Description

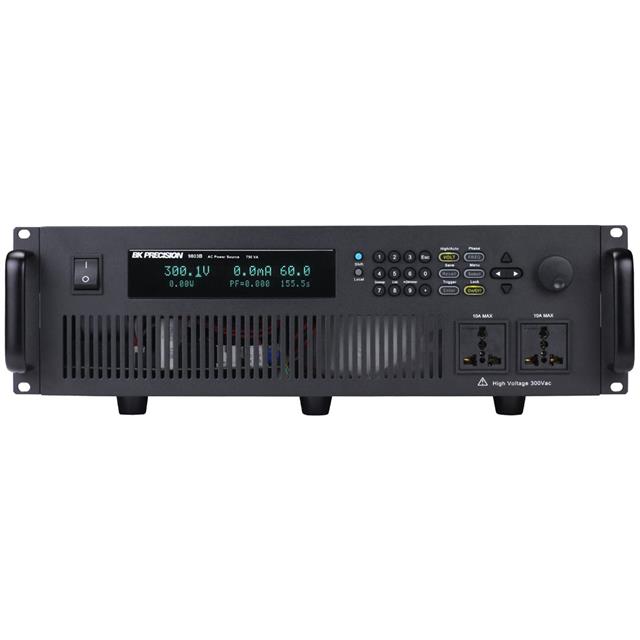

9803B B&K Precision Power Supply Bench (AC to AC) 110VAC, 220VAC VFD 0 ~ 300VAC 0 ~ 6A Memory, Programmable, LAN, RS232, and USB Interface Offers a list mode, power line disturbance (PLD) simulator, and sweep mode, this programmable AC power source provides up to 750 VA power through the universal line output terminals. In addition, it has an output voltage from 0 to 300 V with 0.1 V programming resolution and an adjustable frequency of 45 to 500 Hz.
The B&K 9803B is both a programmable AC source and measurement tool. This fully programmable linear AC source delivers a maximum of 750 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with a 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with a start and stop phase angle from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak, frequency, power factor (PF), apparent power, true power, and elapsed output time.
Features
0 to 300 V, low distortion AC power source
Output frequency adjustable from 45 to 500 Hz
Select 150 V / 300 V autoranging or 300 V range operation for continuous sweep from 0 to 300 V
Displays Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
Adjustable phase angle control
Programmable voltage and frequency limit settings
Built-in PLD and dimmer simulation
Voltage and frequency sweep mode
List mode: 10 user-defined programs with up to 100 programmable steps each
BNC I/O for external triggering, output status indication/control, and synchronization
Save and recall up to 100 instrument settings
USB (USBTMC)-compliant, RS232, and LAN interfaces standard
OVP/OCP/OPP/OTP protection modes and key lock function
Pre-compliance testing for voltage dips and frequency simulations according to IEC61000-4-11 / 4-14 / 4-28
Specs
Product Category: Power Supplies – Bench Top
Product: AC Power Supplies
Type: Programmable
Input Voltage: 110 VAC, 220 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VAC to 300 VAC
Output Current-Channel 1: 6 A
Output Power: 750 VA
Display Type: VFD
Brand: B&K Precision
Product Type: Bench Top Power Supplies
Series: 9200
Subcategory: Power Supplies
Number of Outputs: 1
Voltage Output: 0 ~ 300VAC
Current Output: 0 ~ 6A
Size / Dimension: 21.091″ L x 17.283″ W x 5.173″ H (535.70mm x 439.00mm x 131.40mm)
Manufacturer: B&K Precision
Datasheet: 9800_Series_datasheet.pdf
