Description

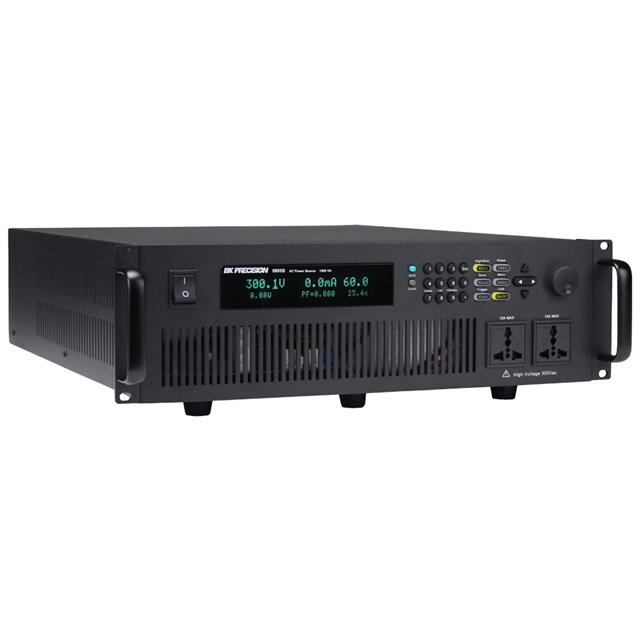

9805B B&K Precision Power Supply Bench (AC to AC) 110VAC, 220VAC VFD 0 ~ 300VAC 0 ~ 12A Memory, Programmable, LAN, RS232, and USB Interface. The 9800 Series is both a programmable AC source and measurement tool. These fully programmable linear AC sources deliver a maximum of 1500 VA through the universal line output terminals on the front and the output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V programming resolution. The output frequency can also be adjusted from 45 Hz to 500 Hz with start and stop phase angle from 0 to 360 degrees. The bright VFD display shows Vrms, Irms, Ipeak,frequency, power factor (PF), apparent power, true power, and elapsed output time. The AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs.
Fully-programmable AC source
The B&K Precision 9805 is both a programmable AC power source and measurement tool in a compact benchtop package. This fully programmable linear AC source delivers up to 150 VA through its universal line output terminal on the front and output connector on the rear. The output can be varied from 0 to 300 V with 0.1 V resolution, and maximum current up to 12 Arms / 12 Apk. The output frequency can be adjusted from 45 Hz to 500 Hz. The bright VFD front panel display shows Vrms, Irms, Ipeak, frequency, power factor (PF), apparent power, true power, and elapsed output time.
The 9805 AC source provides a power line disturbance (PLD) simulator, list mode, and sweep mode for simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs. List mode can be used to generate sequences of waveforms such as surges, sags, and frequency disturbances. The programmed list can be triggered from the front panel or via BNC connector on the rear.
Flexible operation
The 9805 AC source provides a power line disturbance (PLD) simulator which provides more control over the disturbance insertion into the waveform, list mode, which supports the generation of more complex sequences with varying times, amplitudes, and frequencies, and sweep mode for testing the efficiency of switching power supplies and the simulation of common power grid faults and disturbances. A built-in dimmer function is also available for testing motors and LEDs. Additionally, sinusoidal waveforms can be created with adjustable start and stop and phase angles from 0 to 360 degrees.
The 9805 comes complete with flexible I/O including USB (USBTMC-compliant), RS232, LAN, and GPIB interfaces that can be used for monitoring and remote control via a PC. In addition, B&K Precision offers a free NI-certified LabVIEW driver that facilitates automation and system integration.
Common applications include: evaluating transformers, TRIACs, SCRs, and passive components as well as production, R&D, service, and pre-compliance testing.
Specs
Product Category: Power Supplies – Bench Top
Product: AC Power Supplies
Type: Programmable
Input Voltage: 110 VAC, 220 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VAC to 300 VAC
Output Current-Channel 1: 12 A
Output Power: 1500 VA
Display Type: VFD
Brand: B&K Precision
Product Type: Bench Top Power Supplies
Series: 9200
Subcategory: Power Supplies
Number of Outputs: 1
Voltage Output: 0 ~ 300VAC
Current Output: 0 ~ 12A
Size / Dimension: 21.091″ L x 17.283″ W x 5.173″ H (535.70mm x 439.00mm x 131.40mm)
Manufacturer: B&K Precision
Datasheet: 9800_Series_datasheet.pdf
