Description

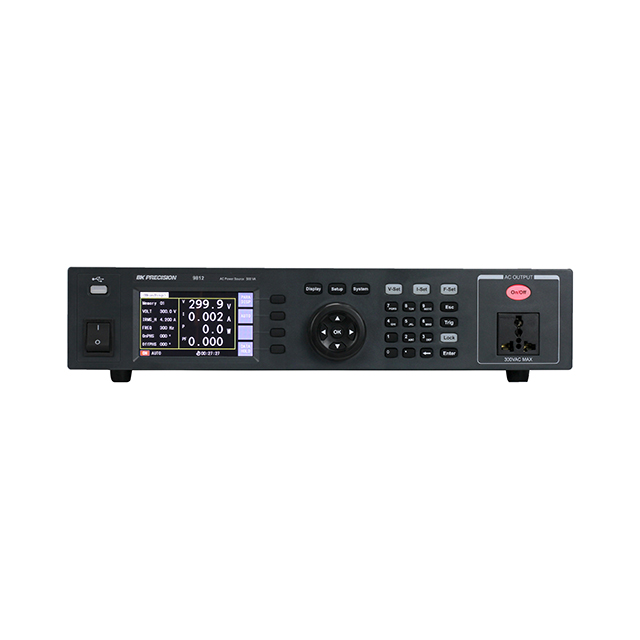

9812 B&K Precision AC Power Source, 110VAC, 9810 Series, 500 VA, 300 Vrms, 16 A, Single Phase, RS232, USB VCOM, USB. 9812 is a 9810 series programmable AC power supply that provides 500VA output with adjustable voltage (0 to 300V) and frequency (45Hz to 500Hz). These power supplies feature a color 4.3inch LCD for easy monitoring of AC voltage, current, peak current, power factor, frequency, and crest factor. The 9810 Series supports advanced list mode programming with up to 50 programs and 9 steps per program, and includes surge/dropout functionality for simulating real-world conditions. Built-in protection features safeguard devices under test with overvoltage, overcurrent, overpower, and overtemperature protections. Communication options include USB (VCOM), RS232, and integration with PLC systems via the dedicated REMOTE terminal.
110V AC line input voltage
4.2A maximum current
Displays Vrms, Irms, Ipeak, frequency, power factor, crest factor, and elapsed time measurements
Thermostatically-controlled fans for quiet operation
24-bit color 4.3” LCD screen, built-in PLD and dimmer simulation
Remotely monitor pass/fail results with the SIGNAL OUT 6-pin terminal
Pre-compliance testing for voltage dips and frequency simulations according to IEC61000-4-11/14 / 28
Switch between manual output control, list program mode, and continuous mode
LabVIEW™ drivers provided
Dimension is (W x H x D) 16.9 x 3.5 x 23.6inch (430 x 88 x 600 mm), 3 year warranty
Specs
Product Category: Power Supplies – Bench Top
Product: AC Power Source
Type: Programmable AC Power Source
Input Voltage: 110 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 V to 300 V
Output Current-Channel 1: 4.2 A
Output Power: 500 VA
Display Type: LCD
AC Supply Voltage: 110 VAC
Brand: B&K Precision
Height: 88 mm
Length: 600 mm
Maximum Operating Temperature: + 40 C
Minimum Operating Temperature: 0 C
Packaging: Bulk
Product Type: Bench Top Power Supplies
Series: 9810
Subcategory: Power Supplies
Width: 430 mm
Number of Outputs: 1
Voltage Output: 0 ~ 300VAC
Current Output: 4.2 ~ 6.3A
Size / Dimension: 23.600″ L x 16.900″ W x 3.500″ H (599.44mm x 429.26mm x 88.90mm)
Manufacturer: B&K Precision
Datasheet: 9810_Series_datasheet.pdf
