Description

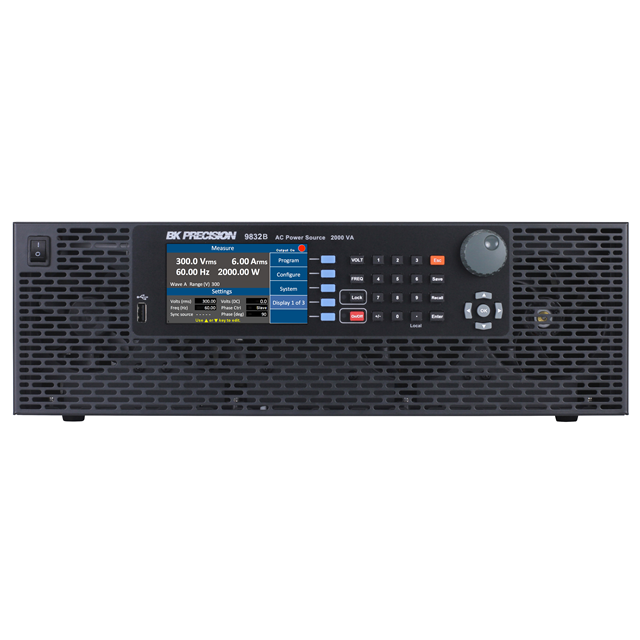

9832B B&K Precision Power Supply Bench/Rack Mount (AC to AC +/- DC Offset) 190 ~ 250VAC LCD 0 ~ 300VAC, 0 ~ 150VAC, 0 ~ ±424VDC 10A, 20A, 10A Analog Input, GPIB, Harmonic Waveforms, LAN Interface, Memory, Software, USB Interface. Offer high-performance and low total harmonic distortion, this programmable AC power source has positive and negative DC offset voltages that expand the AC capabilities to operate in DC and AC+DC output coupling modes with 2000 VA maximum power. In addition, it has an adjustable frequency range from 45 to 600 Hz in 3-phase mode.
The 9830B Series programmable AC power sources provide high performance and low total harmonic distortion in a 3U form factor. The addition of positive and negative DC offset voltages expands the AC capabilities to operate in DC and AC+DC output coupling modes. The user can select built-in and user-defined harmonic waveforms or select from standard sine, square or clipped sine outputs.
Provide a high output current crest factor and low input resistance suitable for high inrush current measurements when evaluating capacitive or inductive loads.
Features
AC, DC and AC+DC power source
Low total harmonic distortion (THD) meets the IEC 61000-3-2 standard
Comprehensive measurement capabilities Vrms, Arms, Vdc, +Apk, -Apk, inrush current, frequency, power factor, apparent power, reactive power, true power, and crest factor
0.98 power factor at AC input stage
Built-in standard waveforms sine, square, clipped sine
30 built-in THD waveforms
Amplifier mode with 1.2 kHz bandwidth for generating user-defined arbitrary waveforms
Step, List and Pulse modes for generating power line disturbance (PLD) simulations. List mode supports 10 user-defined programs with up to 100 programmable steps
Generate custom harmonic waveforms on a PC and download them to the instrument’s 5 non-volatile memory locations
Digital I/O port supporting external trigger, transient indication, failure status indication, remote inhibit, RS232, and external analog output level programming interface
Comprehensive protection modes OVP, OCP, OPP, OTP, fan failure, output timer and key lock
LabVIEW driver and application software with soft panel for remote control available
Control the AC source from a standard web browser via built-in web server
Applications
Pre-compliance testing
Simulate grid faults, voltage sags,frequency, and phase disturbances, according to IEC61000-4-11/14/28/34
Electromagnetic compatibility (EMC), according to IEC61000-3-2
Consumer electronics, appliances, industrial controls, avionics
Evaluate transformers, TRIACs, SCRs, and passive components
Specs
Manufacturer: B&K Precision
Product Category: Power Supplies – Bench Top
Product: AC Power Supplies
Type: Programmable
Input Voltage: 190 VAC to 250 VAC
Number of Outputs: 1 Output
Output Voltage-Channel 1: 0 VAC to 300 VAC/0 VDC to 424 VDC
Output Current-Channel 1: 10 A, 20 A
Output Power: 2 kVA
Display Type: LCD
Brand: B&K Precision
Cable Type: North American Power Cord Included
Height: 132 mm
Length: 560 mm
Maximum Operating Temperature: + 40 C
Minimum Operating Temperature: 0 C
Product Type: Bench Top Power Supplies
Series: 9830B
Subcategory: Power Supplies
Width: 420 mm
Unit Weight: 63 lbs
Number of Outputs: 1
Voltage Output: 0 ~ 300VAC, 0 ~ 150VAC, 0 ~ ±424VDC
Current Output: 10A, 20A, 10A
Size / Dimension: 22.000″ L x 16.500″ W x 5.200″ H (560.00mm x 420.00mm x 132.00mm)
Manufacturer: B&K Precision
Datasheet: 9830B_Series_datasheet.pdf
