Description

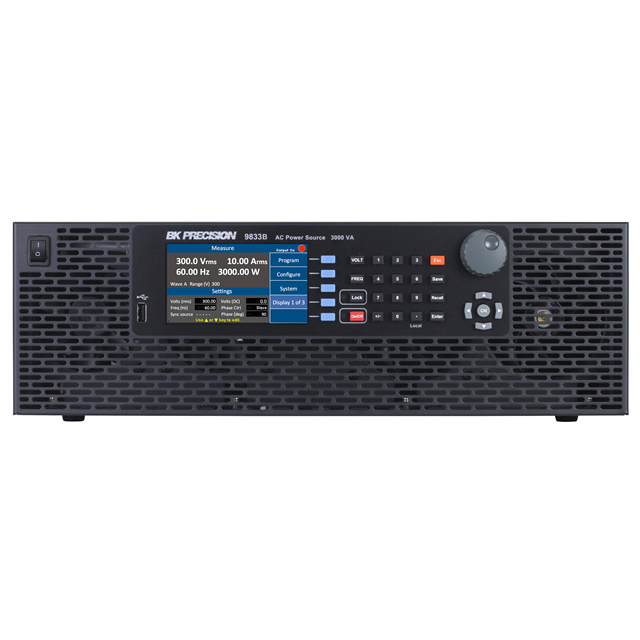

9833B B&K Precision Power Supply Bench/Rack Mount (AC to AC +/- DC Offset) 190 ~ 250VAC LCD 0 ~ 300VAC, 0 ~ 150VAC, 0 ~ ±424VDC 10A, 20A, 10A Analog Input, GPIB, Harmonic Waveforms, LAN Interface, Memory, Software, USB Interface
The 9830B Series programmable AC power sources provide high performance and low total harmonic distortion in a 3U form factor. The addition of positive and negative DC offset voltages expands the AC capabilities to operate in DC and AC+DC output coupling modes. The user can select built-in and user-defined harmonic waveforms or select from standard sine, square or clipped sine outputs.
3-Phase power can be achieved by connecting 3 units of the same model in a master and slave configuration using the optional 3-Phase sync adapters. The frequency range is adjustable from 45 to 600 Hz in 3-phase mode.
Overview
9830B series programmable AC power source with 3000VA maximum power
AC, DC and AC+DC power source
3-phase capability using 3 AC sources and the 3-phase kit (TL983P-KIT)
Low total harmonic distortion (THD) meets the IEC 61000-3-2 standard
Vrm/ Arms/Vdc/+Apk/-Apk/inrush current/freq/power factor/apparent/reactive/true power, crest factor
0.98 power factor at AC input stage, LAN, USB, GPIB, and RS232 interfaces
Built-in standard waveforms sine, square, clipped sine
30 built-in THD waveforms
Amplifier mode with 1.2KHz bandwidth for generating user-defined arbitrary waveforms
LabVIEW™ driver and application software with soft panel for remote control available
Contents
9833B series programmable AC power source, AC power cord with input connector, Test report, Certificate of calibration
Key Features
AC, DC and AC+DC power source
3-Phase capability using multiple AC sources and 3-Phase kit (TL983P-KIT)
Low total harmonic distortion meets the IEC 61000-3-2 standard
Comprehensive measurement capabilities Vrms, Arms, Vdc, +Apk, -Apk, inrush current, frequency, power factor, apparent power, reactive power, true power, and crest factor
0.98 power factor at AC input stage
Built-in standard waveforms sine, square and clipped sine
30 built-in THD waveforms
Amplifier mode with 1.2 kHz bandwidth for generating user-defined arbitrary waveforms
Step, List and Pulse modes for generating power line disturbance (PLD) simulations
List mode supports 10 user-defined programs with up to 100 programmable steps
Generate custom harmonic waveforms on a PC and download them to the instrument’s 5 non-volatile memory locations
Digital I/O port supporting external trigger, transient indication, failure status indication, remote inhibit, RS232, and external analog output level programming interface
Comprehensive protection modes OVP, OCP,OPP, OTP, fan failure, output timer and key lock
Downloadable LabVIEWTM driver and soft panel software for remote control
Standard USB (USBTMC-compliant), RS232, LAN, and GPIB remote interfaces
Number of Outputs: 1
Voltage Output: 0 ~ 300VAC, 0 ~ 150VAC, 0 ~ ±424VDC
Current Output: 10A, 20A, 10A
Size / Dimension: 22.000″ L x 16.500″ W x 5.200″ H (560.00mm x 420.00mm x 132.00mm)
Manufacturer: B&K Precision
Datasheet: 9830B_Series_datasheet.pdf
