Description

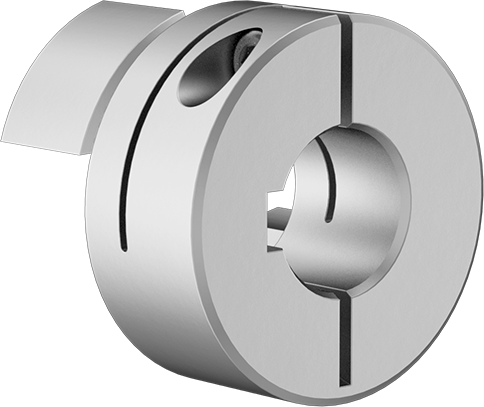

Designed to grip evenly around your shaft, these couplings provide more holding power than set screw couplings without marring the shaft. Tighten the clamping screws to secure. Good for precision motor and pump applications, the spider-shaped cushion reduces shock and compensates for minor shaft misalignment. Couplings allow zero backlash (no play).
Overall Length : 1 13/16″
OD: 1 5/16″
Keyway:
Width : 5 mm
Depth : 2.3 mm
For Shaft Type: Keyed
For Shaft Misalignment Type: Parallel, Angular
For Motion Type: Forward/Reverse, Start/Stop
Shaft Coupling Type: Flexible
Construction: Multipiece
Shaft Mount Type: Clamp On
Clamping Screw:
Type: Socket Head Screw
Material: Black-Oxide Steel
Number Included: 1
Component: Hub
Material: 2024 Aluminum
For Shaft Dia.: 12mm
RoHS: RoHS 3 (2015/863/EU) Compliant
