Description

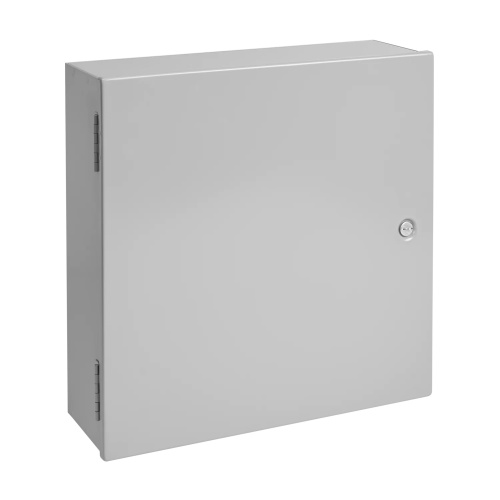

A24N20ALP Hoffman / Pentair Enclosure, Box-Lid, Wallmount, Steel, Gray, 24x20x6.62 In, NEMA 1, Hinged, Slotted LatchThese enclosures have a size range of 16″ 12″ 6″ to 36″ 30″ 12″ and meet basic functionality requirements for applications that do not require oil- or dust-tight enclosures.
Features:
Doors Have Butt Hinges
Collar Studs Provided for Mounting Optional Panel
Slotted Flush Latch; Optional Latch Available
Mounting Holes on Back of Enclosure
Specifications:
14- or 12-Gauge Steel
Finish:
ANSI 61 gray polyester powder paint finish inside and out over pretreated surfaces. Optional solid panels are white and optional perforated panels are gray.
Industry Standards:
UL 50, 50E Listed; Type 1; File No. E27567
cUL Listed per CSA C22.2 No. 40; Type 1; File No. E27567
NEMA/EEMAC Type 1
CSA, File 42184; Type 1
IEC 60529, IP 30
Specifications
Color : Gray
Dimensions : 24 x 20 x 6.62 In. (610 x 508 x 168 mm)
Enclosure Mounting : Wall Mount
IP Rating : IP30
Material : Steel
NEMA Rating : 1
Size : Medium
Size, Approximate Depth : 7″ (178mm)
Size, Approximate Height : 24″ (610mm)
Size, Approximate Width : 20″ (508mm)
Special Features : Hinged
Type : Box-Lid
Manufacturer:Electronic Components
Datasheet:A24N20ALP.pdf
