Description

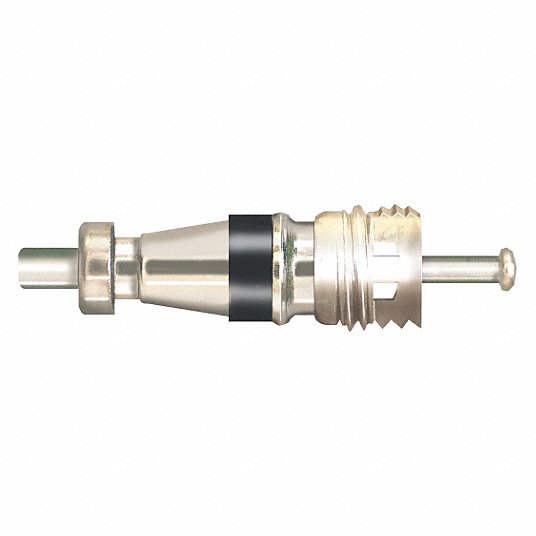

JB Industries A31999 1/4 in. Valve Core
Technical Specs
Item Valve Core
Length 7/8 in
Max. Working Pressure 800 psi
For Use With All CFC, HCFC and HFC Refrigerants
Green Environmental Attribute Does not Contain Formaldehyde
Green Certification or Other Recognition Carbon
PTFE/Neoprene seal replacement valve core
Max 800 psi and 220 degrees Fahrenheit (104 degrees Celsius)
For over 40 years, JB has been committed to producing products of the highest quality
JB machines all of the access valves at the factory in Aurora, Illinois using the highest level of brass consisting of 65% copper and 35% zinc. This gives our brass fittings and access valves high tensile strength while resisting corrosion. Many import fittings use lower quality brass with lower copper content, resulting in higher failure rates. JB machines all of our valves to the strict guidelines of the ARI to ensure proper sealing of the valve and core surfaces. Our access fittings have generous counter bores to allow for the removal of the core if the flare becomes damaged. All tees and crosses are tapped to receive an access core in all 1/4″ SAE flare ends. All pipe connections have internal braze cups for dip tube applications. All valves are equipped with cap and one valve core (braze type, loosely assembled). Temperature range -40 degrees to +250 degrees Fahrenheit (-40 to 121.1 degrees Celsius). Valve core is stainless steel and brass for use with all refrigerants including R-410A. Resistant to oils, alkylates and diluted mineral acids
Manufacturer:Electronic Components
Datasheet:Valve-Core-Flyer.pdf
