Description

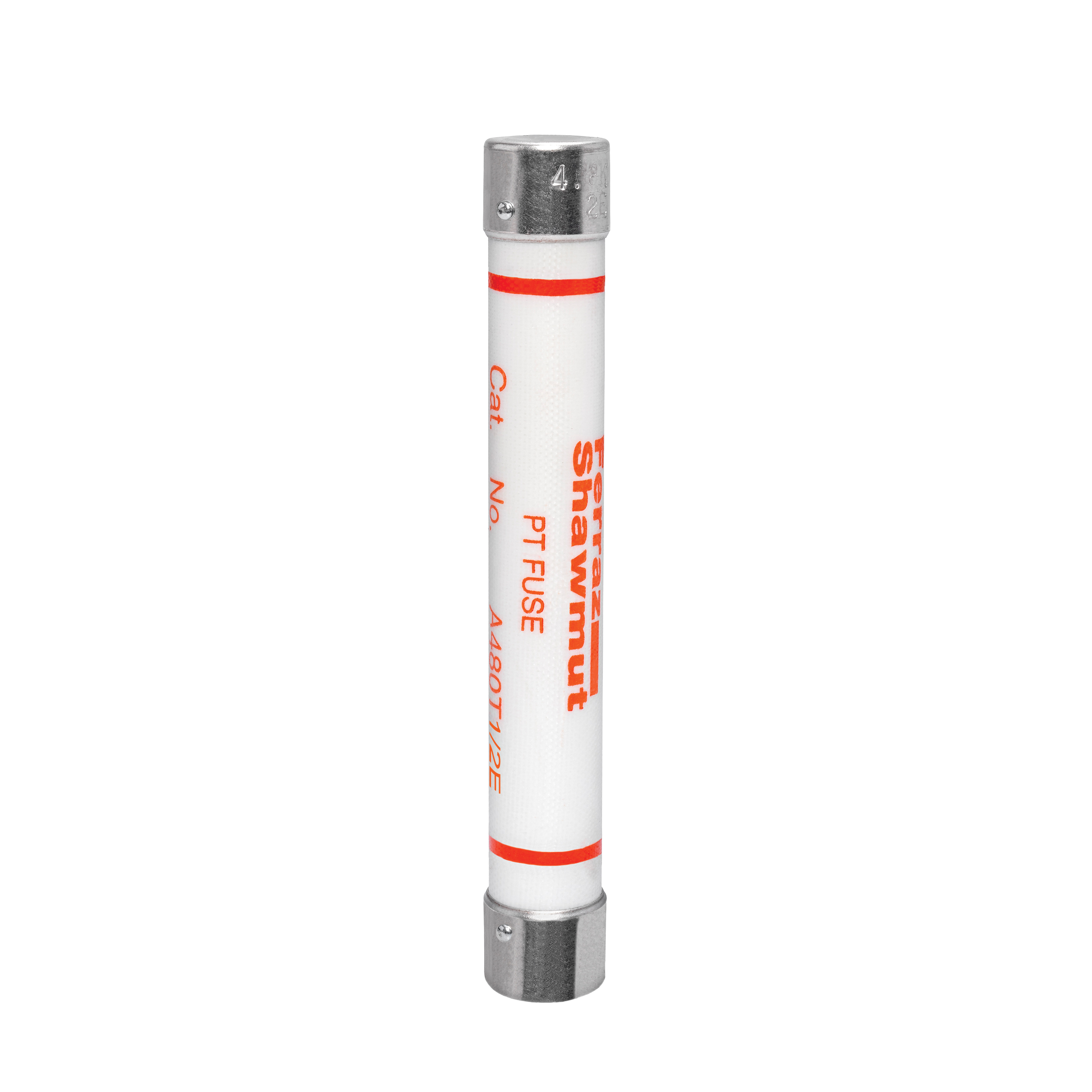

A480T1/2E Mersen Potential Transformer, Fast Blow Fuse 500mA 4.8kVAC Cartridge Requires Holder, Ferrule Mount
Terminal Type: Ferrule
Mounting: Clip
Diameter: 0.812 Inch
Length: 5.625 Inch
Additional Information: Body Material Glass-Melamine Laminate, Epoxy; Contact Material Tin Plated Copper/Brass, Copper
Catalog Number: A480T1/2E
Brand Name: Ferraz
Type: Potential Transformer
Characteristics: Non-Venting
Voltage Rating: 4.8 Kilovolt AC
Current Rating: 0.5 Amp
Interrupting Rating: 50 Kiloamp (Maximum Symmetrical)
Indication Type: Blown Fuse
CATALOG DESCRIPTION: MEDIUM VOLTAGE POTENTIAL TRANSFORMER FUSE 4800VAC 0.5A FERRULE AMP-TRAP
Category: Current Limiting Fuses
Full Size Image
Full Technical Description: Potential Transformer Type; 5.625 Inch; 4.8 Kilovolt AC Voltage Rating; 0.812 Inch Diameter; Clip Mounting; 50 Kiloamp (Maximum Symmetrical) Interrupting Rating; 0.5 Amp Current Rating; Ferrule Terminal Type; Non-Venting Characteristics; Blown Fuse Indication Type; AMP-TRAP[R] Brand; Body Material Glass-Melamine Laminate, Epoxy; Contact Material Tin Plated Copper/Brass, Copper
Manufacturer: Mersen – Ferraz Shawmut
Manufacturer Brand: Mersen – Ferraz Shawmut, Inc.
Product Brochure
Product Description: Mersen-Ferraz A480T1/2E 4800V Transformer Fuse
Sub-Category: Transmission and Distribution Fuse
MPN: A480T1/2E
Manufacturer: Mersen Ferraz Shawmut
Response Time: Fast Blow
Fuse Type: Cartridge
Current Rating: 500mA
Voltage Rating: 4.8kVAC
Breaking Voltage: 80kA
Package / Case: Cartridge, Non-Standard
Size / Dimension: 0.811″ Dia x 5.630″ L (20.60mm x 143.00mm)
Mounting Type: Requires Holder
Applications: Transformer Protection
