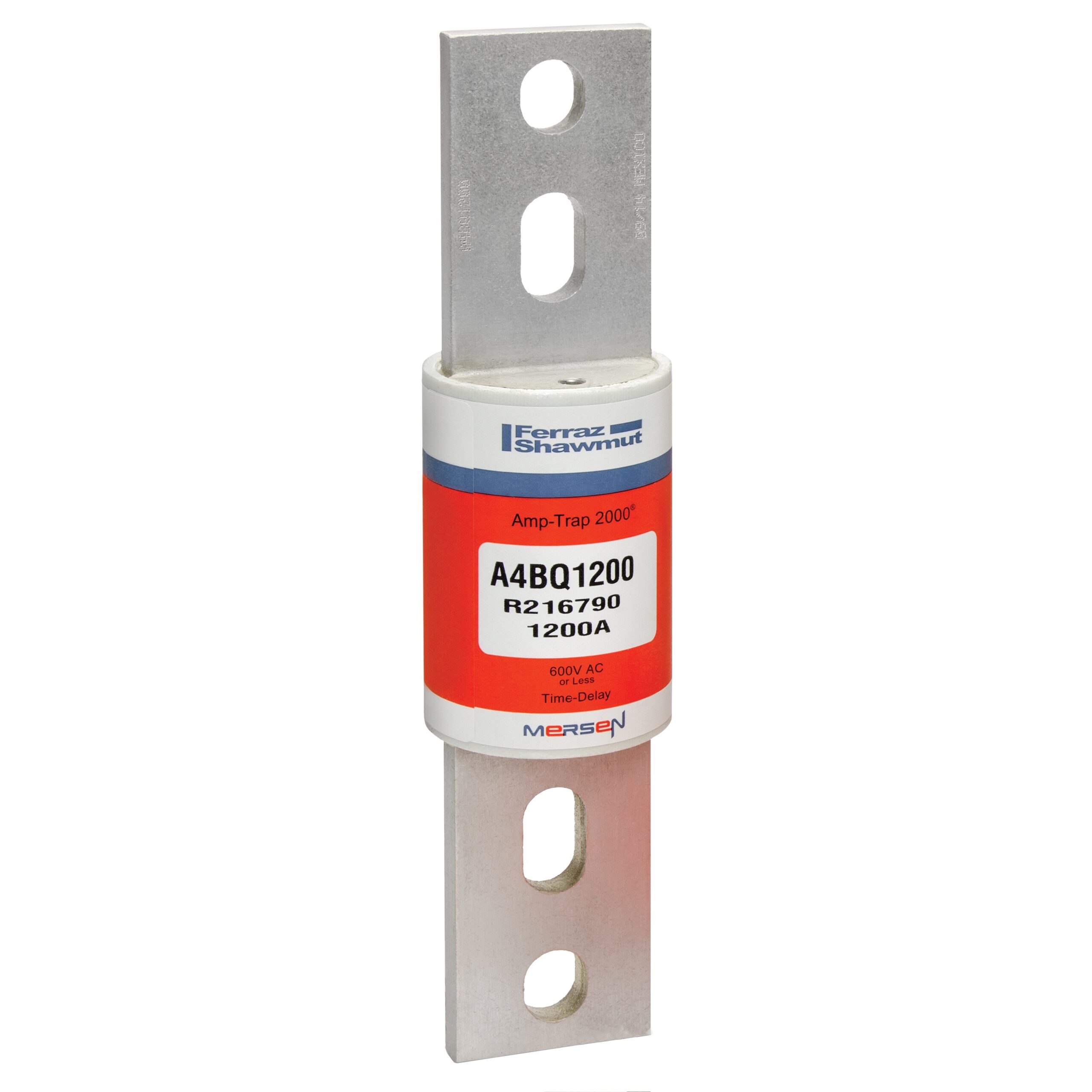

A4BQ1200 Mersen Slow Blow Class L Time Delay Fuse, 600VAC, 300kA IR, 1200 Ampere Cylindrical Cartridge Bolt Mount CSA, UL
Amp-Trap 2000 A4BQ fuses are 20% more current limiting than any other Class L fuse
300kA interrupt rating – self-certified, UL witnessed tests
Pure Silver Links ensure lowest let-thru current and longer fuse life
High-grade silica filler ensures fast arc quenching
Applications – Large Motor and Transformers, Lighting & Heating, Mains, Feeders, Branch Circuits
UL / CSA
Amp-Trap 2000 A4BQ fuses are 20 percent more current limiting than any other Class L fuse on the market. When correctly coordinated, they bring a superior level of protection to service entrance equipment. Downstream circuit components have maximum protection against short circuit let-thru current. A4BQ’s built-in 4-second time-delay characteristic (at 500percent of rated current) accommodates harmless inrush currents with no nuisance opening.
Mersen – A4BQ1200 – Specifications
Brand Name Mersen
Manufacturer Part Number A4BQ1200
Item Description Fuse A4BQ – Class L – Time-Delay 600VAC 500VDC 1200A Blade Amp-Trap 2000
Fuse Types Low Voltage
Type Fuses
UNSPSC Code 39121600
Series A4BQ – Class L – Time-Delay
EAN/UPC Code 782001939397
Rated voltage AC UL 600 V
Rated voltage DC UL 500 V
Frequency (Hz) 50/60 Hz
Ampere Rating 1200 A
ROHS Compliant Yes
AC or DC AC/DC
Fuse Class Class L
Speed/Characteristic Time Delay
Mounting Bolted
AC Max I.R./Breaking Capacity: I1 200 kA
Connection/Terminal Material Silver-Plated Copper
Connection/Terminal Type Blade
Product Diameter 63.5 mm
Product Length 273 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 2.0412 kg
Sell Pack Width 85.9 mm
Sell Pack Length 279.4 mm
Sell Pack Height 82.6 mm
Product group Low Voltage UL/CSA Fuses
Body/Insulating Material GMG
Product Weight 1.9459 kg
MPN: A4BQ1200
Manufacturer: Mersen Ferraz Shawmut
Response Time: Slow Blow
Fuse Type: Cartridge
Current Rating: 1.2kA
Voltage Rating: 600VAC
Breaking Voltage: 200kA AC, 100kA DC
Package / Case: Cylindrical, Blade Terminal (Bolt)
Size / Dimension: 2.480″ Dia x 10.748″ L (63.00mm x 273.00mm)
Mounting Type: Bolt Mount
Applications: Electrical, Industrial
