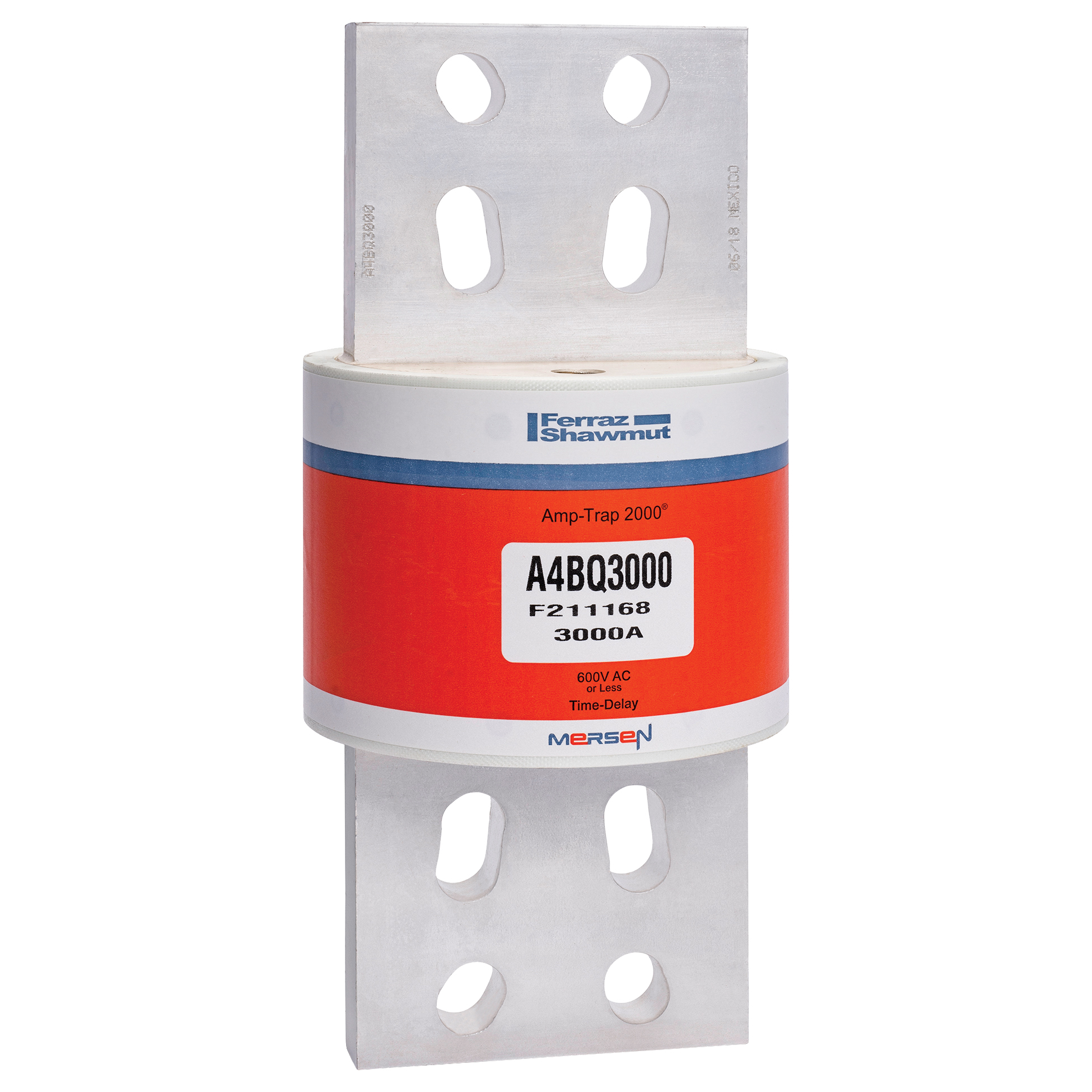

A4BQ3000 Mersen Slow Blow L Fuse 3kA 600VAC 500VDC Cylindrical Cartridge Bolt Mount CSA, UL
Mersen / Ferraz Shawmut power fuse features A4BQ series time delay blade fuse operates at a current rating of 3000 amps and voltage rating of 600 Vac/Vdc its unique rejection style design prevents fuse replacement by other classes it has an interrupt current rating of 200 Kiloampere (Ac) 100 Kiloampere (Dc) fuse is UL listed CSA certified.
Amp-Trap 2000 A4BQ fuses are 20% more current limiting than any other Class L fuse
300kA interrupt rating – self-certified, UL witnessed tests
Pure Silver Links ensure lowest let-thru current and longer fuse life
High-grade silica filler ensures fast arc quenching
Applications – Large Motor and Transformers, Lighting & Heating, Mains, Feeders, Branch Circuits
UL / CSA
MPN: A4BQ3000
Manufacturer: Mersen Ferraz Shawmut
Response Time: Slow Blow
Fuse Type: Cartridge
Current Rating: 3kA
Voltage Rating: 600VAC
Breaking Voltage: 200kA AC, 100kA DC
Package / Case: Cylindrical, Blade Terminal (Bolt)
Size / Dimension: 5.000″ Dia x 10.748″ L (127.00mm x 273.00mm)
Mounting Type: Bolt Mount
Applications: Electrical, Industrial
