Description

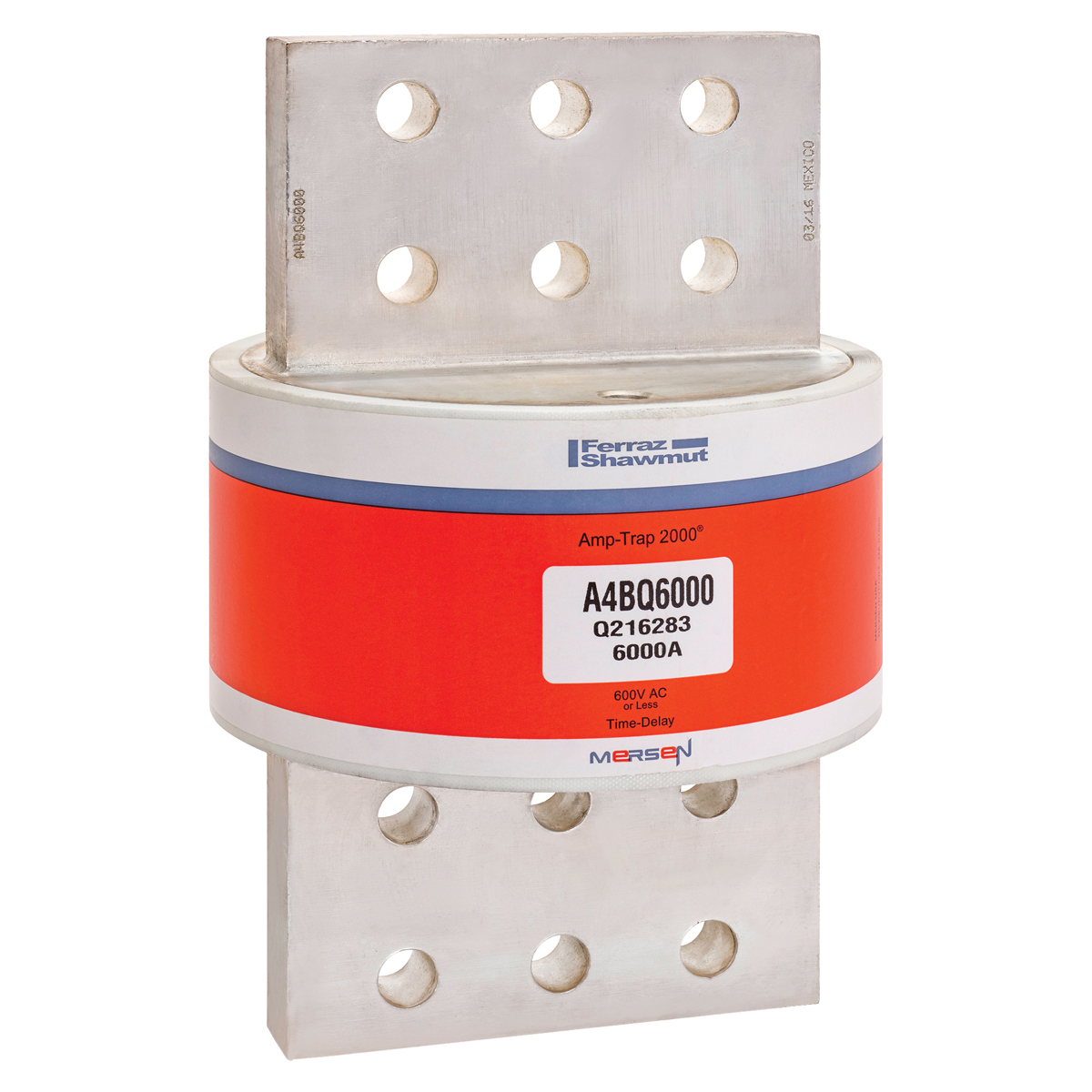

A4BQ6000 Mersen Slow Blow L Fuse 6kA 500VDC Amp-trap 2000® Fuse – 6000A, 600V AC, Time Delay / Current Limiting, Blade Mount Type, L Class Bolt Mount CSA, UL
Time-delay bolt-on fuses, also called slow-blow fuses, are current protection devices that tolerate brief spikes from short events such as motor starts or equipment startups. They feature tabs or lugs with holes that allow them to securely bolt onto terminals, busbars, and other components.
Amp-Trap 2000 A4BQ fuses are 20% more current limiting than any other Class L fuse
300kA interrupt rating – self-certified, UL witnessed tests
Pure Silver Links ensure lowest let-thru current and longer fuse life
High-grade silica filler ensures fast arc quenching
Applications – Large Motor and Transformers, Lighting & Heating, Mains, Feeders, Branch Circuits
UL / CSA
MPN: A4BQ6000
Manufacturer: Mersen Ferraz Shawmut
Response Time: Slow Blow
Fuse Type: Cartridge
Current Rating: 6kA
Voltage Rating: 600VAC
Breaking Voltage: 200kA AC, 100kA DC
Package / Case: Cylindrical, Blade Terminal (Bolt)
Size / Dimension: 7.126″ Dia x 10.748″ L (181.00mm x 273.00mm)
Mounting Type: Bolt Mount
Applications: Electrical, Industrial
