Description

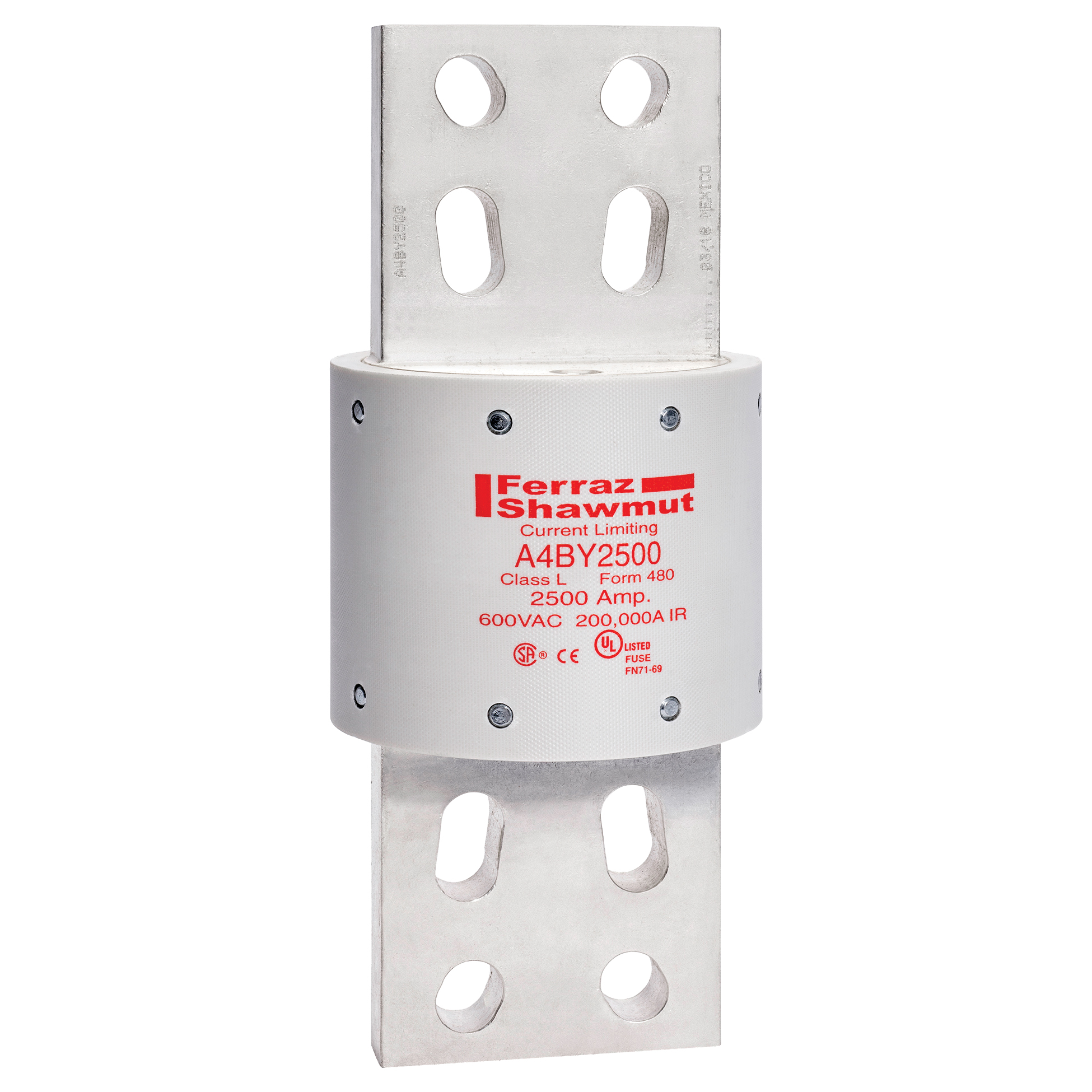

A4BY2500 Mersen Slow Blow L Fuse 2.5kA 600VAC 300VDC Cylindrical Cartridge Bolt Mount CSA, UL
Mersen A4BY2500 – Amp-Trap A4BY fuses have been the industry’s favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Amp-Trap A4BY fuses have been the industry’s favorite when it comes to protecting service entrance equipment, feeder circuits, and circuit breakers. The A4BY is a 100percent rated device and may be applied at continuous currents up to its ampere rating. A 4-second minimum time delay at 500percent rating allows the A4BY to pass normal current surges and to coordinate with ground fault relays.
Specifications
Fuse Type (UL)
Class L
Manufacturer
Mersen
Fuse Amperage Rating
2500 Amp
Component
Fuse
Body/Insulating Material
GMG
Mounting
Bolted
Indication System Type
TI Indicator
Connection/Terminal Type
Blade
Connection/Terminal Material
Silver-Plated Copper
Fuse Voltage Rating
600 Volt
MPN: A4BY2500
Manufacturer: Mersen Ferraz Shawmut
Response Time: Slow Blow
Fuse Type: Cartridge
Current Rating: 2.5kA
Voltage Rating: 600VAC
Breaking Voltage: 200kA AC, 100kA DC
Package / Case: Cylindrical, Blade Terminal (Bolt)
Size / Dimension: 4.488″ Dia x 10.748″ L (114.00mm x 273.00mm)
Mounting Type: Bolt Mount
Applications: Electrical, Industrial
