Description

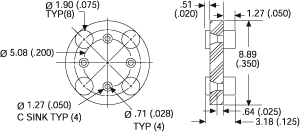

Aavid Thermalloy 7717-5-DAP Mounting Pad Round, Nylon 4 Leads TO-5 8.89 mm, 0.533 mm Thickness
The 7717-178NG is a 3-lead natural Standard Mounting Pad with nylon base resin as per ASTM STD D4066-82 PA111 base.
8.89mm Heat Sink diameter
Applications
Industrial
7717-5NG
Standard Mounting Pads,TO-5 Nylon
Leads: 4
Diameter: 8.89
Thickness: 3.18
Material Specifications
| Maximum Operating Temperature | ||||
| Suffix | Base Material | Continuous | Deflection | Color |
| -N | Nylon base resin per ASTM STD D4066-82 PA111 |
121.0°C 250°F |
243.3°C 470°F |
Natural |
| -DAP* | Dialyl Phthalate per MIL-M-14G Type SDG |
204.4°C 400°F |
282.2°C 540°F |
Black only |
* All “-DAP” mounting pads meet UL 94V-0
Note: Please specify material for each mounting pad:
“N” = nylon; “Dap” = Diallyl Phtalante.
Example: 7717-3N, 7717-86DAP
Manufacturer Part Number: 7717-5-DAP
Aavid Thermalloy
