Description

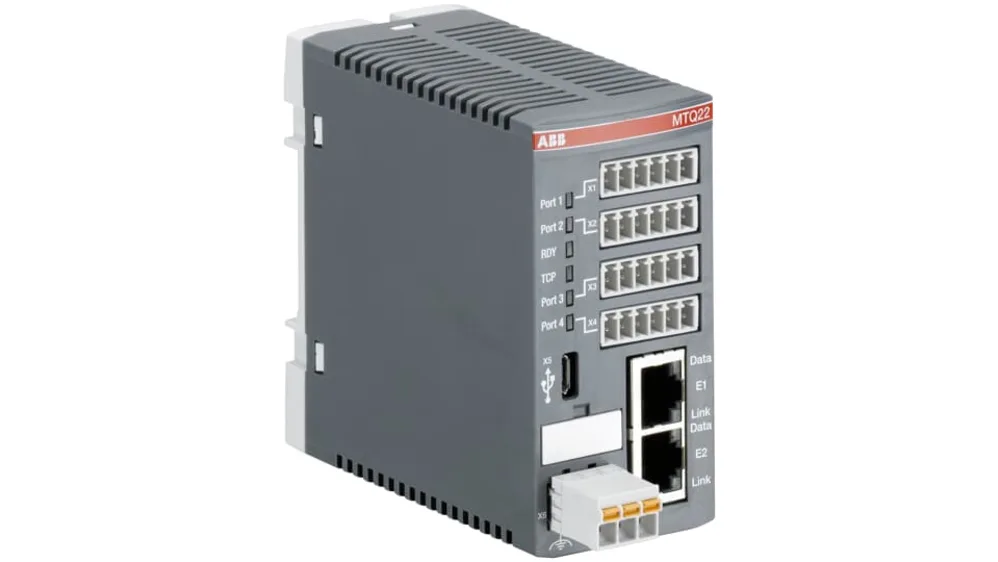

1SAJ260000R0100 ABB MTQ22-FBP.0 Ethernet communication module supports the Modbus TCP network protocol and allowes the connection of up to 4 UMC100.3 motor controllers. Can be mounted to DIN rail.
Specifications
Primary brand ABB
Main function Communications unit
Functions Communication unit
Communication protocol Ethernet
Modbus TCP
Technical compatibility with PSTX series
Order code / Manufacturer SKU MTQ22-FBP
Manufacturer product status Commercialized
ABB, 1SAJ260000R0100, Modbus TCP Interface, 24 V DC, IP20 Enclosure, 0 to 60 deg C, DIN Rail Mounting, 96 mm L x 45 mm W x 90 mm H Dimensions
1SAJ260000R0100 Application
For UMC100 universal motor controller and 4-device FieldBus plug
1SAJ260000R0100 Standards
BAA Compliant|CE Certified|CAN/CSA C22.2 No.142|DNV Certified|GL Certified|IEC/EN 61131-2|RoHS Compliant|UL 508|RoHS 2011/65/EC|CE Certified|CAN/CSA C22.2 No. 142|IEC/EN 61131-2|UL 508
Datasheet: ABB MTQ22-FBP
