Description
1SAJ242000R0001 ABB Interface, Single Mounting Kit, Series: PDP32, 24 V DC, PROFIBUS Interface, Specifications: CAN/CSA C22.2 No.61010-1/CAN/CSA C22.2 No.61010-2-201/IEC/EN 61131-2/UL 61010-1/UL 61010-2-201, For Use With: UMC100, 64 mm H x 22.5 mm W x 54 mm D Dimensions

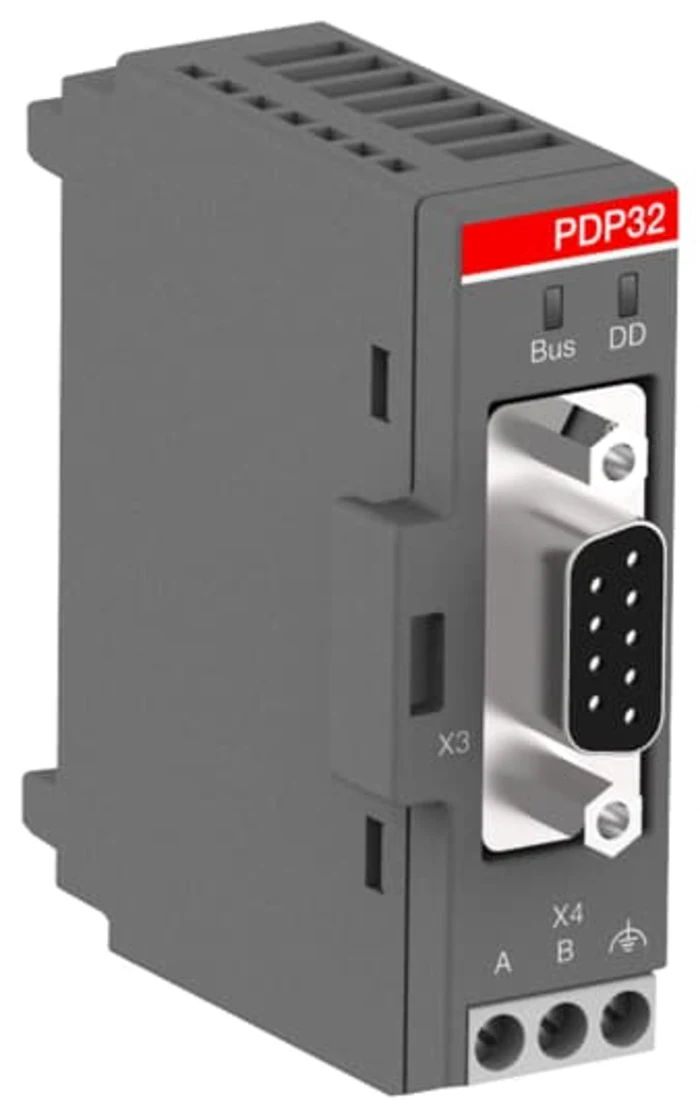

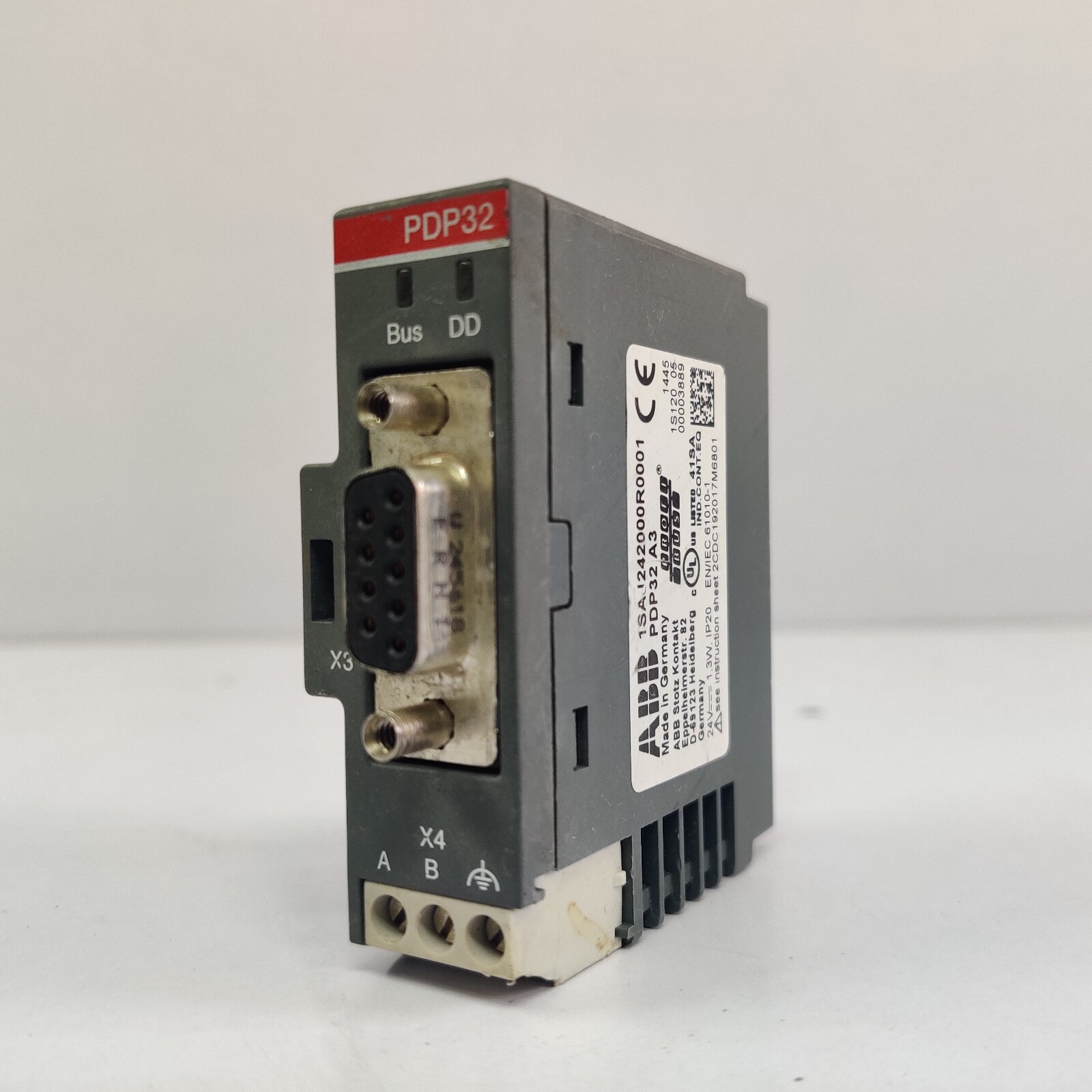

The PDP32.0 communication interface is a PROFIBUS DP (Decentralized Periphery) module and allowes the UMC100.3 to be connected to the PROFIBUS network. It can be mounted directly onto the UMC100.3 or on the SMK3.0 mounting kit.
Specifications
Brand ABB
Product Type
Communication Module
Series 1SAJ2
Length 112mm
Depth 59mm
Width 22.5mm
Standards/Approvals
CAN/CSA C22.2 No.61010-1, CAN/CSA C22.2 No.61010-2-201, IEC/EN 61131-2, UL 61010-1, UL 61010-2-201
Mount Type DIN Rail
Communication Port Type Profibus DP
Country of Origin Germany
Technical
Connecting Capacity 1x 0.2-2.5 mm²
Mounting Type UMC100.3/Single Mounting
Mounting on DIN Rail With Single Mounting KIt
Power Loss Approximately 1 W
Rated Control Supply Voltage (Us) 24 V DC
Recommended Screw Driver Pozidriv 1
Standards CAN/CSA C22.2 No.61010-1
Standards CAN/CSA C22.2 No.61010-2-201
Standards IEC/EN 61131-2
Standards UL 61010-1
Standards UL 61010-2-201
Suitable for UMC100
Terminal Type Screw Terminals
Tightening torque Auxiliary Circuit 0.5 N·m
Tightening torque Control Circuit 0.5 N·m
Wire Stripping Length 7 mm
Technical UL/CSA
Connecting Capacity UL/CSA Flexible with Ferrule 1x 28-12 AWG
Connecting Capacity UL/CSA Rigid 1x 28-12 AWG
Datasheet: ABB PDP32
