Description

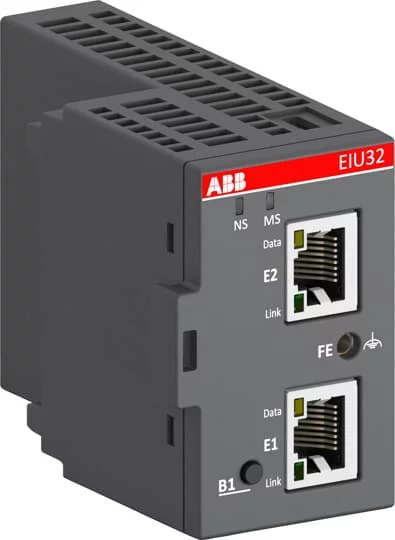

1SAJ262000R0100 ABB Interface, Single Mounting Kit, Series: EIU32, 24 V DC, Ethernet/IP Interface, Specifications: CAN/CSA C22.2 No.142/IEC/EN 63000/IEC 61131-2/IEC/EN 61000-6-2/IEC/EN 61000-6-4/UL 508, For Use With: UMC100.3, 64 mm H x 42.5 mm W x 93.3 mm D Dimensions
Technical Specifications
Dimensions
Product Net Width 42.5 mm
Product Net Depth / Length 93.3 mm
Product Net Height 64 mm
Product Net Weight 0.109 kg
Technical
Mounting Type UMC100.3/Single Mounting
Mounting on DIN Rail With Single Mounting KIt
Power Loss Approximately 2.2 W
Rated Control Supply Voltage (Us) 24 V DC
Recommended Screw Driver Pozidriv 1
Standards CAN/CSA C22.2 No.142
Standards IEC/EN 63000
Standards IEC 61131-2
Standards IEC/EN 61000-6-2
Standards IEC/EN 61000-6-4
Standards UL 508
Suitable for UMC100.3
Product Type Interface Module
Series EIU32.0
Standards/Approvals
IEC/EN 63000, CAN/CSA C22.2 No.142, IEC 61131-2, IEC/EN 61000-6-2, IEC/EN 61000-6-4, UL 508
Communication Port Type Ethernet/IP
Country of Origin Germany
ABB EIU32.0 EtherNet/IP interface – Fieldbus communication module EIU32.0 – ABB – 1SAJ262000R0100 – 4013614515811: Supply voltage at AC 50 Hz 2 V, Supply voltage at AC 60 Hz 24V, Supply voltage at DC 24V, Voltage type of the supply voltage DC, Supports protocol for TCP / IP no, Supports protocol for PROFIBUS no, Supports protocol for CAN no, Supports protocol for INTERBUS no, Supports protocol for ASI no, Supports protocol for KNX no, Supports protocol for MODBUS no, Supports data highway protocol no, Supports protocol for DeviceNet no, Supports protocol for SUCONET no, Supports protocol for LON no, Supports protocol for SERCOS no, Supports protocol for PROFINET IO no, Supports protocol for PROFINET CBA no, Supports protocol for EtherNet / IP yes, Supports protocol for DeviceNet Safety no, Supports protocol for INTERBUS safety no, Supports protocol for PROFIsafe no, Supports protocol for SafetyBUS p no, Wireless standard Bluetooth no, Wireless standard WLAN 802.11 no, Radio standard GPRS no, Radio standard eGPRS no, Radio standard GSM no, Radio standard LTE no, Radio standard UMTS no, IO-Link master no, System component yes, IP protection) IP20, With electrical isolation no, Rail mounting possible yes, Wall / direct mounting possible yes, Front installation possible no, Rack mounting possible no, Suitable for safety functions no, SIL according to IEC 61508 without, Performance level according to EN ISO 13849-1 without, Associated equipment (Ex ia) no, Associated equipment (Ex ib) no, Explosion protection category for gas without, Explosion protection category for dust without, Width 42.5 mm, Height 64 mm, Depth 93,3 mm
Datasheet: ABB EIU32
