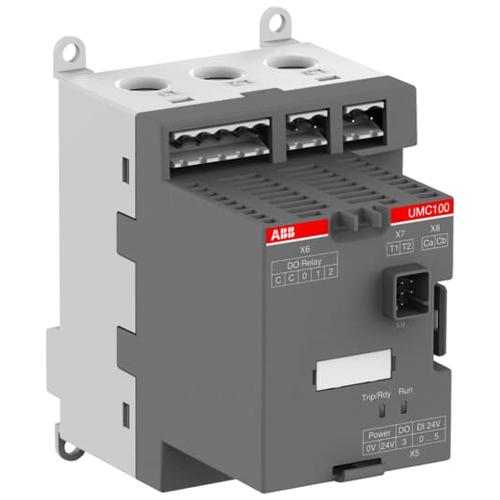

ABB, 1SAJ530000R0100, Motor Control Modules, Function: Motor Protection, Digital Input, 24 V DC, 63 A, 50 /60 Hz Frequency, Universal Contact Configuration, IP20 Enclosure, 0 to 60 deg C, 106 mm H x 70 mm W x 107 mm D Dimensions
Description: UMC100.3 DC, Supply 24 V DC, 6 DI, 4 DO, PTC input
Specs
Weight: 0.28kg
SKU: 1SAJ530000R0100
Dimensions
Product Net Width:70 mm
Product Net Depth / Length:107 mm
Product Net Height:106 mm
Product Net Weight:275 g
Technical
Connecting Capacity:1x 0.2-2.5 mm²
Minimum Mounting Distance:0 mm
Mounting Position:1 … 6
Number of Poles:3P
Pollution Degree:3
Power Loss:Approximately 3 W
Rated Control Supply Voltage (Us):24 V DC
Rated Frequency (f):Main Circuit 50 Hz
Main Circuit 60 Hz
Supply Circuit DC
Rated Impulse Withstand Voltage (Uimp):Auxiliary Circuit 4 kV
Rated Operational Current (Ie):63 A
Rated Operational Voltage:Main Circuit 690 V AC
Main Circuit 1000 V AC
Recommended Screw Driver:Pozidriv 1
Setting Range:0.24 … 63 A
Standards:CAN/CSA C22.2 No.60947-1
CAN/CSA C22.2 No.60947-4-1
IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
IEC/EN 60947-8
UL 508
Terminal Type:Screw Terminals
Tightening Torque:Auxiliary Circuit 0.5 N·m
Control Circuit 0.5 N·m
Trip Class:
class 5E
class 10E
class 20E
class 30E
class 40E
Wire Stripping Length:7 mm
Technical UL/CSA
Connecting Capacity UL/CSA:1x 28-12 AWG
Maximum Operating Voltage UL/CSA:
Auxiliary Circuit 230 V AC/DC
Main Circuit 600 V AC
Tightening Torque UL/CSA:
Auxiliary Circuit 8 in·lb
Control Circuit 8 in·lb
Environmental
Ambient Air Temperature:
Operation 0 … +60 °C
Storage -25 … +70 °C
Degree of Protection:
IP20
Maximum Operating Altitude Permissible:
Without Derating 2000 m
Resistance to Shock acc. to IEC 60068-2-27:
15g 1 shock 11 ms
Resistance to Vibrations:
4g 2 … 100 Hz
