Description

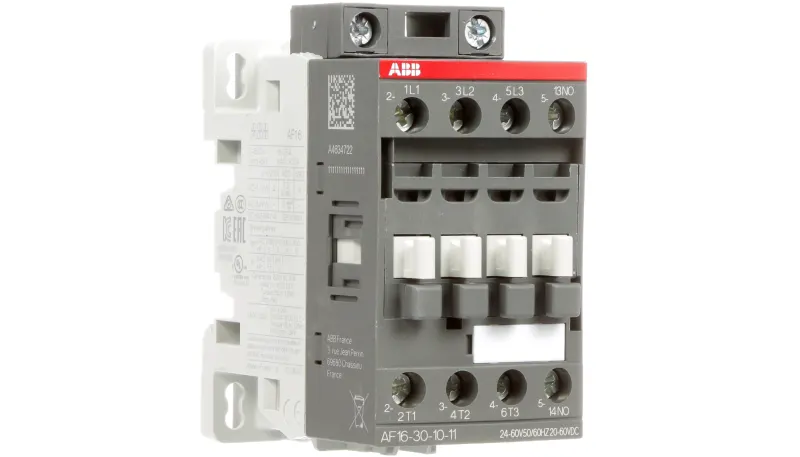

ABB AF16-30-10-13 AF16 Contactor, 100 VAC, 250 VDC V Coil, 30 A, 50/60Hz 3NO Contact, 3 Poles, dedicated for UL lighting applications
The AF Series 1-stack 3-pole contactors are of the block type design. Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) – Control circuit: AC or DC operated – Accessories: a wide range of accessories is available.
Features:
– Optimize logistics and cut administration costs with fewer product variants to handle
– Access global support and use the same products in all parts of the world: the 100 – 250 V, AC/DC coil covers all standard network voltages
– A reduction of the coil’s energy consumption by 80% lets you save energy
– Secure your uptime by letting the AF technology overbridge voltage drops and sags.
– Up to 560 kW – 400 V AC-3, 900 hp – 480 V and 2650 A – 690 V AC-1, 2700 A – general use
– Only 4 coils cover 24 V – 500 V AC and 20 V – 500 V DC
– Screw, spring and ring tongue connection types
– Built-in surge suppression
– Connection sets and interlock unit for reversing and star-delta starter for an easy, fast and secure assembly of starters
– Mirror and mechanically linked contacts
Number of Main Contacts NO: 3
Number of Main Contacts NC: 0
Number of Auxiliary Contacts NO: 1
Number of Auxiliary Contacts NC: 0
Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Rated Operational Voltage: Auxiliary Circuit 690 V / Main Circuit 690 V
Rated Frequency (f): Auxiliary Circuit 50 / 60 Hz / Control Circuit 50 / 60 Hz / Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith): acc. to IEC 60947-4-1, Open Contactors ? = 40 °C 35 A / acc. to IEC 60947-5-1, ? = 40 °C 16 A
Rated Operational Current AC-1 (Ie): (690 V) 40 °C 30 A / (690 V) 60 °C 30 A / (690 V) 70 °C 26 A
Rated Operational Current AC-3 (Ie): (415 V) 60 °C 18 A / (440 V) 60 °C 18 A / (500 V) 60 °C 15 A / (690 V) 60 °C 10.5 A / (380 / 400 V) 60 °C 18 A / (220 / 230 / 240 V) 60 °C 18 A
Rated Operational Current AC-3e (Ie): (415 V) 60 °C 18 A / (440 V) 60 °C 18 A / (500 V) 60 °C 15 A / (690 V) 60 °C 10.5 A / (380 / 400 V) 60 °C 18 A / (220 / 230 / 240 V) 60 °C 18 A
Rated Operational Power AC-3 (Pe): (400 V) 7.5 kW / (415 V) 9 kW / (440 V) 9 kW / (500 V) 9 kW / (690 V) 9 kW / (380 / 400 V) 7.5 kW / (220 / 230 / 240 V) 4 kW
Rated Operational Power AC-3e (Pe): (415 V) 9 kW / (440 V) 9 kW / (500 V) 9 kW / (690 V) 9 kW / (380 / 400 V) 7.5 kW / (220 / 230 / 240 V) 4 kW
Rated Operational Current AC-15 (Ie): (500 V) 2 A / (690 V) 2 A / (24 / 127 V) 6 A / (220 / 240 V) 4 A / (400 / 440 V) 3 A
Rated Short-time Withstand Current Low Voltage (Icw): at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 A / at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 A / at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 A / at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 A / at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A / for 0.1 s 140 A / for 1 s 100 A
Maximum Breaking Capacity: cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 A / cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A
Maximum Electrical Switching Frequency: (AC-1) 600 cycles per hour / (AC-15) 1200 cycles per hour / (AC-2 / AC-4) 300 cycles per hour / (AC-3) 1200 cycles per hour / (DC-13) 900 cycles per hour
Rated Operational Current DC-13 (Ie): (24 V) 6 A / 144 W / (48 V) 2.8 A / 134 W / (72 V) 1 A / 72 W / (110 V) 0.55 A / 60 W / (125 V) 0.55 A / 69 W / (220 V) 0.27 A / 60 W / (250 V) 0.27 A / 68 W / (400 V) 0.15 A / 60 W / (500 V) 0.13 A / 65 W / (600 V) 0.1 A / 60 W
Rated Insulation Voltage (Ui): acc. to IEC 60947-4-1 690 V / acc. to IEC 60947-5-1 690 V / acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp): 6 kV
Maximum Mechanical Switching Frequency: 3600 cycles per hour
Rated Control Circuit Voltage (Uc): 50 Hz 100 … 250 V / 60 Hz 100 … 250 V / DC Operation 100 … 250 V
Operate Time: Between Coil De-energization and NC Contact Closing 13 … 98 ms / Between Coil De-energization and NO Contact Opening 11 … 95 ms / Between Coil Energization and NC Contact Opening 38 … 90 ms / Between Coil Energization and NO Contact Closing 40 … 95 ms
Specs: AF16-30-10-13
