Description

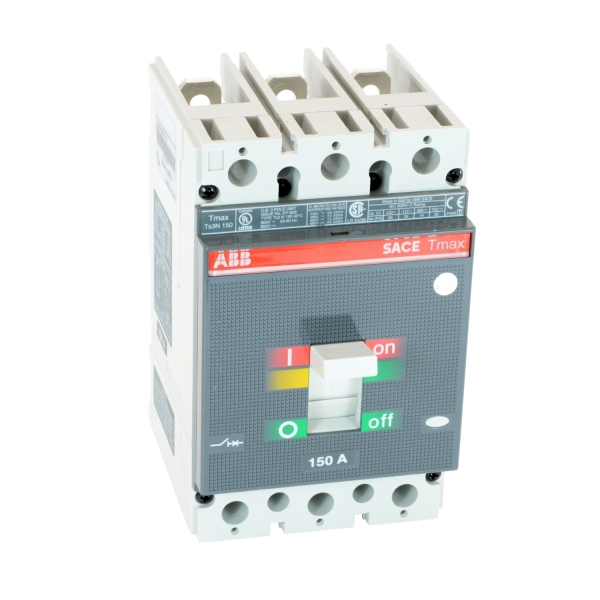

TS3N150TW ABB Ts3N 150 Amp SACE Tmax Circuit Breaker 480/600V 3 Pole 150 Amp TS3N150 3 pole, 150 amps rated at 600V AC/DC, Tmax molded case circuit breaker with a thermal magnetic trip device and 25kA at 480V AC interrupt current rating
Actuator Type Toggle
Manufacturer ABB
Current Rating 150 A
Manufacturer Part Number TS3N150TW
Mounting Type DIN Rail Mount
Number of Poles 3 Pole
Series TS3 Series
Type Thermal Magnetic
ABB TS3N150TW Tmax Normal Interrupt Molded Case Circuit Breaker, 600 VAC/VDC, 150 A, 14 to 20 kA Interrupt, 3 Poles, Thermal/Magnetic Trip
Item#: TS3N150TW Mfr#: TS3N150TW UPC: 804325347242
This construction characteristic allows for the CSA/UL listed field installation of internal accessories without exposure to energized parts
Breakers from ABB ensure that the toggle indicates the precise position of the moving contacts, this guarantees safe and reliable signaling by the device
Tmax molded case circuit breakers can be installed in panels and switchboards in either the horizontal or vertical planes while being fed from either end without any derating of their performance characteristics
Compact size
All Tmax molded case circuit breakers are CSA/UL listed and IEC rated for global application and acceptance
All versions of the Tmax family are suitable for reverse feed applications
The TS3 breaker family ranges from 15 through 225 A
The TS3 trip mechanisms are non-interchangeable and use sensitive electro magnetic relays for overcurrent trip protection
Heat sensitive bimetals are used for thermal over current protection
Short circuit current protection begins at 10 times the thermal rating of the breaker and uses a precise magnetic coil principle
Without lug
C.BREAKER TMAX Ts3N 150 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 60-600 A
