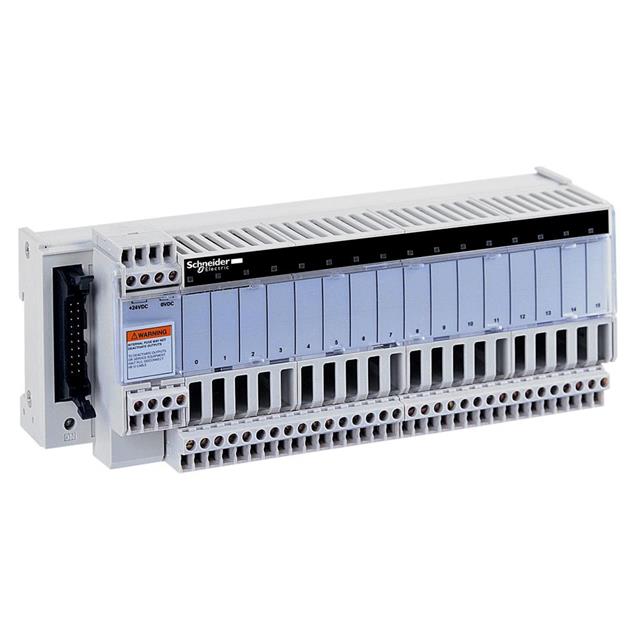

ABE7S16E2B1 Schneider Electric sub-base – soldered solid state output relay ABE7 – 16 inputs – 24 V DC, DIN Rail Screw Terminal for Modicon ABE7 Series
Catalog Number: ABE7S16E2B1
Brand Name: Advantys, Telefast
Model: ABE7
Number of Terminals: 2
Wire Clamping Type: SCREW
Mounting: DIN RAIL
Approval: UL, CSA
Additional Information: VOLTAGE RATING 24 VDC; CURRENT RATING 12 MILLIAMPERE; NUMBER OF CHANNELS 16; ENCLOSURE IP2X; SIZE 206 MM W X 58 MM D X 77 MM H; OPERATING TEMPERATURE -5 TO 60 DEG C
CATALOG DESCRIPTION: SUB-BASE – SOLDERED SOLID STATE OUTPUT RELAY ABE7 – 16 INPUTS – 24 V DC
Category: Programmable Logic & Automation Input Modules
Full Technical Description: UL, CSA Approval; DIN Rail Mounting; 2 Terminal(S); Screw Wire Clamping Type; ADVANTYS[T], TELEFAST[R] Brand; Voltage Rating 24 VDC; Current Rating 12 Milliampere; Number of Channels 16; Enclosure IP2X; Size 206 mm W X 58 mm D X 77 mm H; Operating Temperature -5 to 60 Deg C; ABE7 Model
Manufacturer: Square D Co.
Manufacturer Brand: Square D Co.
Product Description: Square D ABE7S16E2B1 Telefast 2 Input Module-16 Channel
Sub-Category: Plc Terminal Base
Manufacturer PN: ABE7S16E2B1
Manufacturer: Schneider
