Description

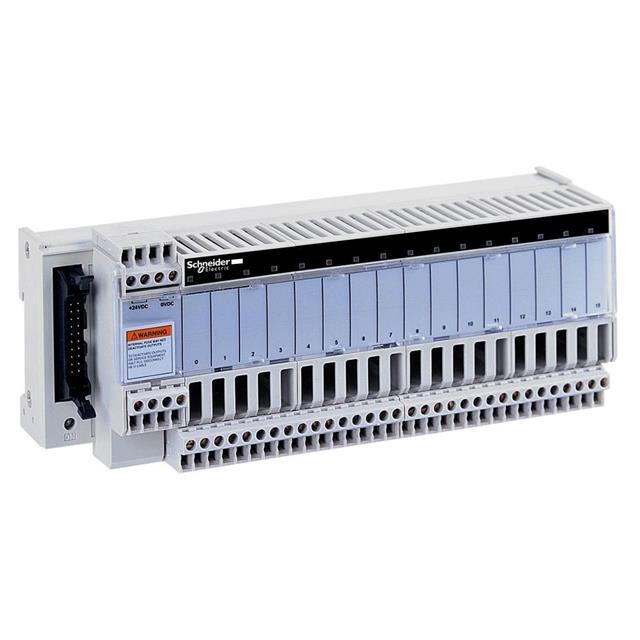

ABE7S16E2F0 Schneider Electric Telefast sub-base – soldered solid state output relay ABE7 – 16 inputs – 115VAC, DIN Rail Screw Terminal for Modicon ABE7 Series. This product is part of the Modicon ABE7 range, an offer of connection sub bases for Telefast pre-wired system. This soldered solid state output relay sub base offers 16 channels with 2 terminals per channel. The solid state input relay sub base offers a rated supply voltage of 110V/130V AC 50Hz/60Hz for sensor end and 24V DC for PLC end. It is furnished with screw type terminals for electrical connection. It is an IP2x rated product. Its dimensions are 206mm (width) x 58mm (depth) x 77mm (height). It weighs 0.397kg. It is suitable for all types of industrial applications. This product is certified by BV, UL, GL, DNV, CSA, LROS and EAC. The fixing is done by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). The Modicon ABE7 means greater simplicity to rationalize wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
UPC: 78590154627
Catalog Number: ABE7S16E2F0
Brand Name: Advantys, Telefast
Model: ABE7
Number of Terminals: 2
Wire Clamping Type: SCREW
Mounting: DIN RAIL
Approval: UL, CSA
Additional Information: VOLTAGE RATING 110 VAC; CURRENT RATING 12 MILLIAMPERE; NUMBER OF CHANNELS 16; ENCLOSURE IP2X; SIZE 206 MM W X 58 MM D X 77 MM H; OPERATING TEMPERATURE -5 TO 60 DEG C
CATALOG DESCRIPTION: SUB-BASE – SOLDERED SOLID STATE OUTPUT RELAY ABE7 – 16 INPUTS – 115 V AC
Category: Programmable Logic & Automation Input Modules
Full Technical Description: UL, CSA Approval; DIN Rail Mounting; 2 Terminal(S); Screw Wire Clamping Type; ADVANTYS[T], TELEFAST[R] Brand; Voltage Rating 110 VAC; Current Rating 12 Milliampere; Number of Channels 16; Enclosure IP2X; Size 206 mm W X 58 mm D X 77 mm H; Operating Temperature -5 to 60 Deg C; ABE7 Model
Manufacturer: Square D Co.
Manufacturer Brand: Square D Co.
Product Description: Square D ABE7S16E2F0 Telefast 2 Input Module-16 Channel-w/SS Relays
Manufacturer PN: ABE7S16E2F0
Manufacturer: Schneider
Datasheet: Schneider Telefast-ABE-7-ABE7S16E2F0
