Description

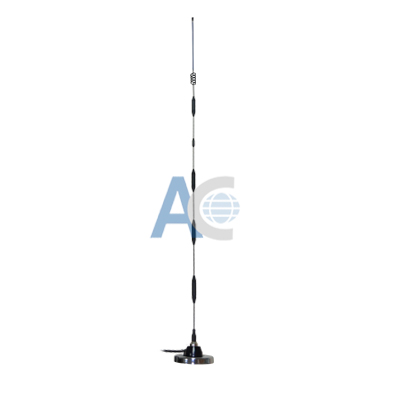

GSM Magnetic cellular band antenna delivers marked improvements in efficiency and gain across all common frequencies(824-960/1710-1880MHz) in use for cellular bands.
Small enough to be used indoors and outdoors, the antenna performance has been designed to take advantage of any metal plate (ground-plane) it attaches to deliver best of class performance.
Specifications:
Electrical
Frequency Range 824-960/1710-1880MHz
Band width 136/170MHz
Gain 14dBi
V.S.W.R <= 2.0
Radiation Omni-Direction
Polarization Vertical
Maximum Input Power 50W
Impedance 50Ohm
Connector SMA Male
Cable Type RG58U
Cable Length 3M or can be customization
Antenna Radome Material Steel
Mount way Magnetic
Mechanical
Dimensions 75x895mm
Weight 340g
Operating Temperature -40 to+70C
RoHS Compliant
Manufacturer Part Number: AC-QGC-I22
