Description

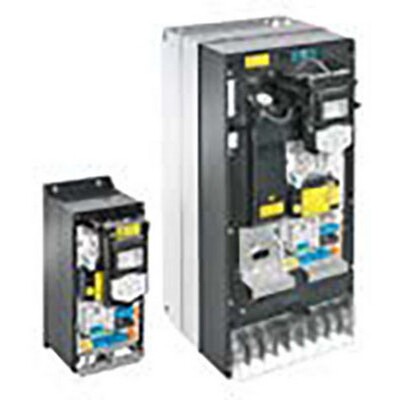

ACS880-01-031A-2 ABB Drive, AC, 7.5HP, 240V, 24.3A, CT,N1 240Vin 3PH 10HP 29.3A VT W/DB Trans 18.5″Hx6.7″Wx10.3″D ACS880
The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.
The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.
^ACS880-01, Light Duty (110% overload) HP: 10 HP, Light Duty (110% overload) Output Current: 29.3 A, Heavy Duty (150% overload) HP: 7.5 Hp, Heavy Duty (150% overload) Output Current: 24.3 A, Voltage: 240 VAC, Input Voltage Range: 208-240V, UL Type 1 (IP21), WALL MOUNTED DRIVE, Local or Remote Mounted LCD Display and Keypad, 3-Phase Input, 3-Phase Output, Frame: R3, Product Dimensions HxWxD (in): 18.7 x 6.8 x 10.3, Product Weight (lb): 22. Options included: Centrifuge control program, Centrifuge control program, 3-Phase 208-240V AC Supply Voltage, Normal Duty: 10 HP 29.3A, Heavy Duty: 7.5 HP 24.3A, NEMA 1 / IP21, Wall Mount Drive, Frame Size: R3. H1: 18.71″ H2: 16.54″ W: 6.77″ D: 10.28″ Weight: 22Lbs, Cabinet Spacing Requirement (7.87 in. Above / 11.81 in. Below), Deratings Required Elevation > 3300ft – Temperature > 104F, Cooling Requirement (79 CFM/ 457W)
Our wall-mounted drives are designed on ABBs common drives architecture. They can be customized to meet the precise needs of industries such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills and marine. They are designed to control a wide range of applications including cranes, extruders, winches, winders, conveyors, mixers, compressors, pumps and fans. The drive comes in nine different frame sizes (R1 to R9) for easy installation and commissioning. At the heart of the drive is direct torque control (DTC), ABBs premier motor control technology. The extensive range of options include EMC filters, encoder and resolver interfaces, du/dt filters, sine filters, chokes and brake resistors, as well as application specific software. Built-in safety features reduce the need for external safety components. Multiple drives can be daisy-chained for synchronized drive-to-drive communication.The drives offering includes enclosure classes UL type 1 (IP21) and UL type 12 (IP55) for dusty and wet environments. If you have any questions on the ACS880 drive, please feel free to contact Wistex, and one of expert sales associates will be able to futher answer your questions.
Manufacturer: Electronic Components
MFG Part #: ACS880-01-031A-2
