Description

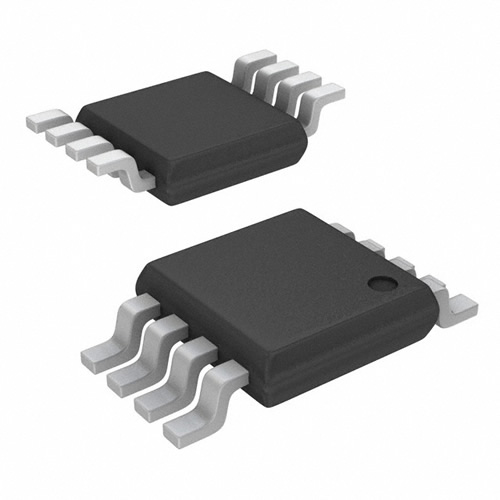

AD8314ARM Analog Devices ADI RF Detector 100MHz-2.7GHz 45dB RF Detector IC Cellular, GSM, TDMA, CDMA 100MHz ~ 2.7GHz -45dBm ~ 0dBm 8-TSSOP, 8-MSOP
The AD8314 is a complete low cost subsystem for the measurement and control of RF signals in the frequency range of 100 MHz to 2.7 GHz, with a typical dynamic range of 45 dB, intended for use in a wide variety of cellular handsets and other wireless devices. It provides a wider dynamic range and better accuracy than possible using discrete diode detectors. In particular, its temperature stability is excellent over the full operating range of −40°C to +85°C.
Specifications
Manufacturer: Analog Devices Inc.
Product Category: RF Detector
RoHS: No
Type: Logarithmic Amplifiers
Dynamic Range dB: 45 dB
Operating Supply Voltage: 2.7 V to 5.5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: – 40 C
Mounting Style: SMD/SMT
Package / Case: MSOP-8
Packaging: Tube
Brand: Analog Devices
Pd – Power Dissipation: 200 mW
Series: AD8314
Factory Pack Quantity: 50
Unit Weight: 0.004938 oz
Manufacturer:Analog Devices
Datasheet:AD8314.pdf
