Description

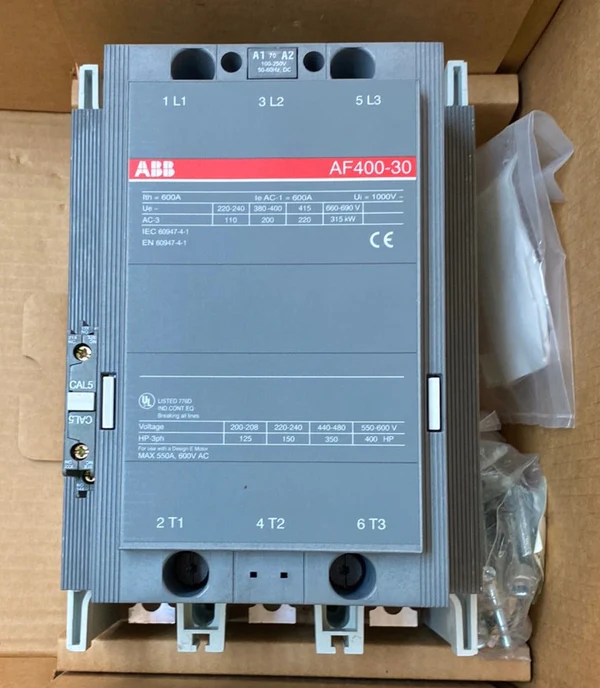

The AF400-30-11-70 , 1SFL577001R7011 is a 3 pole – 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 550 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
The AF Series of contactors are used for controlling power circuits up to 600 V AC and 240 V DC. They are mainly used for controlling 3‑phase motors, non‑inductive or slightly inductive loads. Contactors include an electronic coil interface accepting a wide control voltage Uc min. … Uc max. Only four coils cover control voltages between 24…500 V 50/60 Hz or 20…500 V DC – AF contactors can manage large control voltage variations. One coil (e.g., 100…250 V 50/60 Hz ‑ DC) can be used for different control voltages used worldwide without any coil change – AF contactors have built‑in surge protection and do not require additional surge suppressors – The built‑in N.C. auxiliary contact is a mirror contact in compliance with annex F of IEC 60947‑4‑1.
Brand: ABB
Part Number # : AF400-30-11-70
Coil Power Rating: 5/12/895/955, 5/12/895/955 VA
Coil Voltage: 100 V AC, 250 V DC, 100 VAC, 250 VDC
Dimensions: 278 mm H x 186 mm W x 216 mm D
Series: AF400
UNSPSC: 39121529
UPC: 07320500217665
Contactors contain integrated, electronically controlled coils which reduce energy consumption. Contains push‑in spring terminals which allow for fast, easy wiring. Contactors can overbridge voltage drops and sags. AF400, 3P CONTACTOR, 100-250V AC/D, Terminal Type: Main Circuit: Bars, Rated Control Circuit Voltage: 50 Hz /60 Hz DC Operation 100-250 V, A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 100-250 V, AC/DC
Specs: AF400-30-11-70
