Description

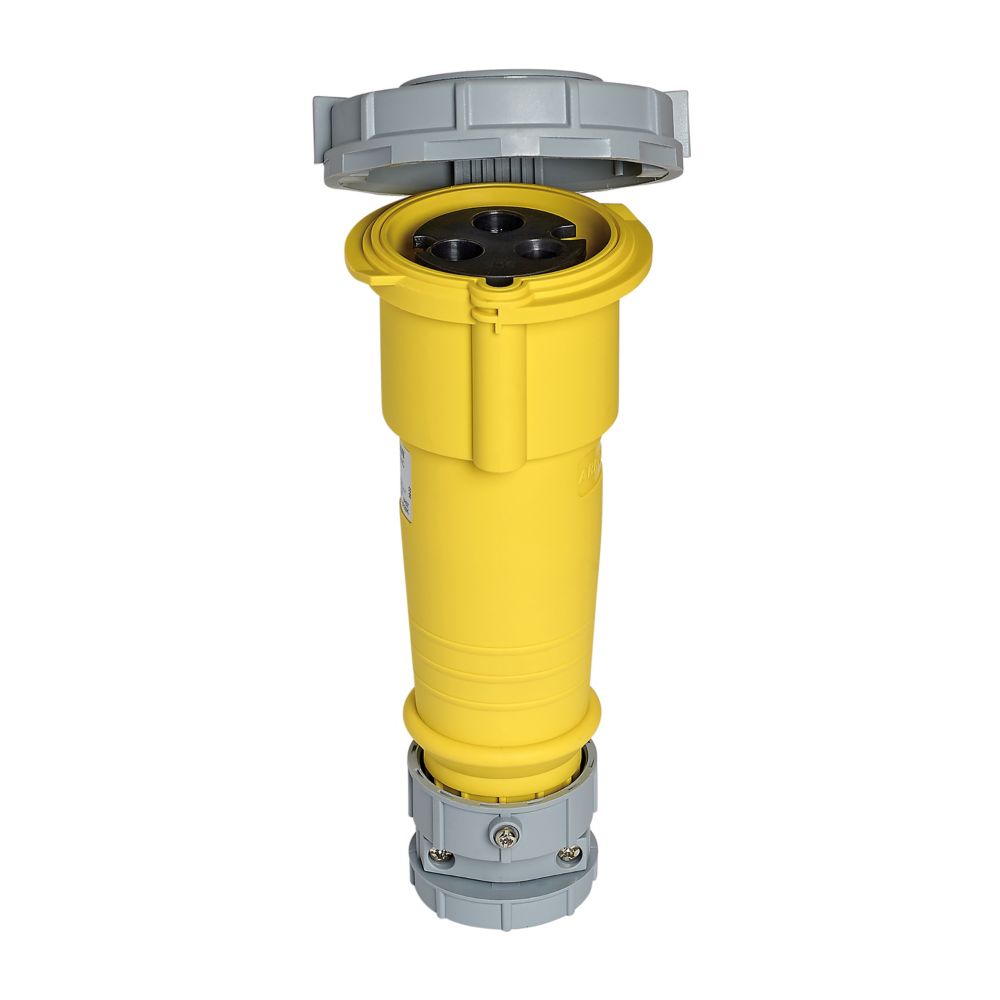

AH332C4W Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #10 -#2 AWG, 32A, Extra Heavy-Duty, 110-130V, Back wire, Yellow, Nickel plated brass, IP67, IP69K, Nylon, Two-pole, Three-wire, grounding, 0.433-0.985in (1.10-2.5cm), Female, Nylon, Cover Free Hanging (In-Line). Eaton Wiring’s 32 Amp Pin and Sleeve Connector features 130 Volts, reliable connectivity and durability ideal for industrial, food and beverage, and wastewater treatment applications.
Connector Style: Pin and Sleeve (2P3W)
Connector Type: Receptacle, Female Sockets
Current Rating: 32A
Voltage Rating: 110/130VAC
Number of Position: 3
Termination: Screw
Mounting Type: Free Hanging (In-Line)
Protection: IP67/IP69K Dust Tight, Water Resistant, Waterproof
Flammability Rating: UL94 HB
Approval: UL
Manufacturer: Arrow Hart / Eaton Wiring Devices
Manufacturer PN: AH332C4W
Yellow Nylon PA6-GF30 Material; 0.433 Inch min. Cable Outer Diameter; 0.985 Inch Max. Cable Outer Diameter; 3 Wire(S); 110 to 130 Volt AC Voltage Rating; 32 Amp Current Rating; 2 Pole(S); Water Tight; Arrow HART Brand
