Description

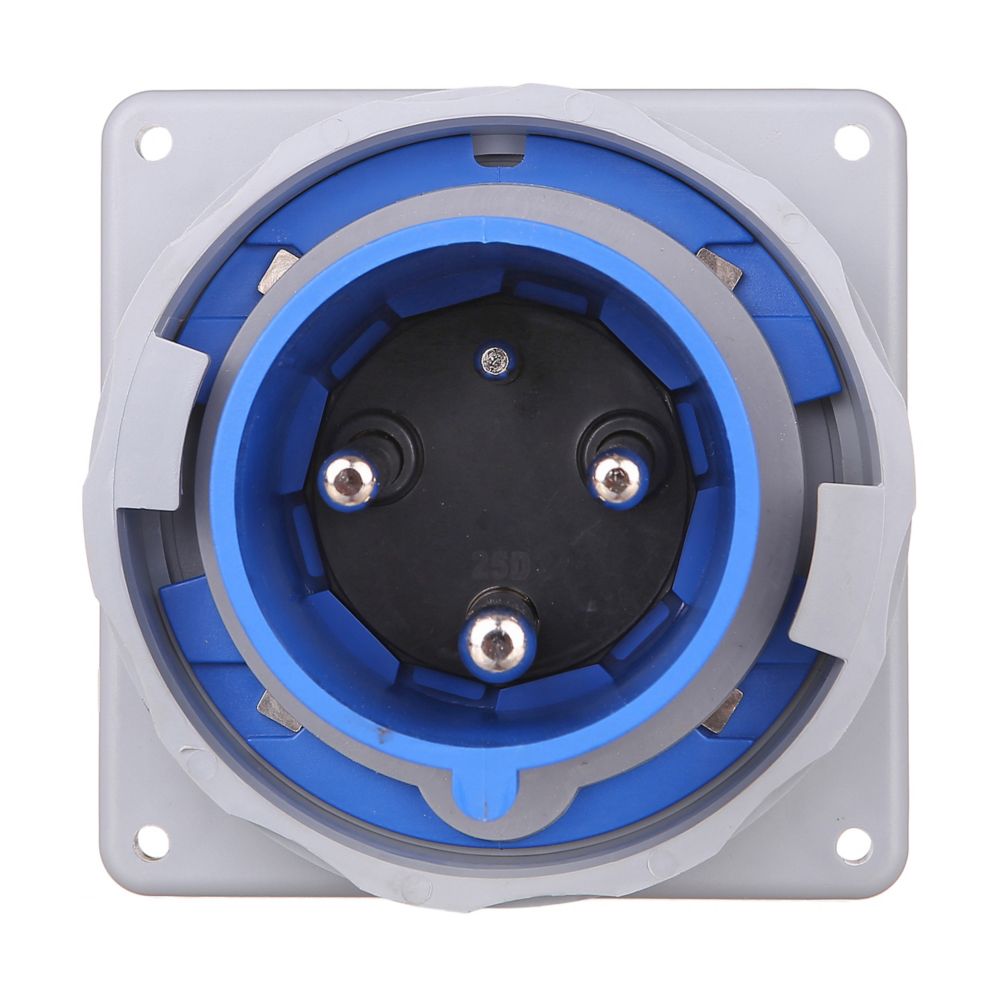

AH360B6WDR Eaton Arrow Hart pin and sleeve inlet, IP69K Rated, 60/63A, 60A 250V/63A 200-250V, two-pole, #8 – #2 AWG, #10 – #2 AWG (Ground), #12 – #16 AWG (Pilot), nickel plated brass, 3 wire , Panel Mount, Flange
Eaton’s Arrow Hart full line of pin and sleeve devices offer sturdy nylon construction, rugged design with corrosion resistant components for lasting electrical performance, and watertight sealing that provides IP69K protection so you can feel confident in even the most severe washdown environments.
Watertight sealing provides IP69K protection so you can feel confident in even the most severe washdown environments
Pin and sleeve devices meet or exceed the rigorous IEC 309-1 and 309-2 watertight requirements and are intermateable with all other non-hazardous IEC 309 devices
Nickel plated pins offer long life corrosion protection
Threaded NPT cable entry provides efficient means of attaching flexible conduit or wire mesh grips
Connector Style: Pin and Sleeve (2P3W)
Connector Type: Plug, Male Pins
Current Rating: 60/63A
Voltage Rating: 200/250VAC
Number of Position: 3
Termination: Screw
Mounting Type: Panel Mount, Flange
Protection: IP67/IP69K Dust Tight, Water Resistant, Waterproof
Flammability Rating: UL94 HB
Approval: CE, cULus, TUV
Manufacturer: Arrow Hart / Eaton Wiring Devices
Manufacturer PN: AH360B6WDR
