Description

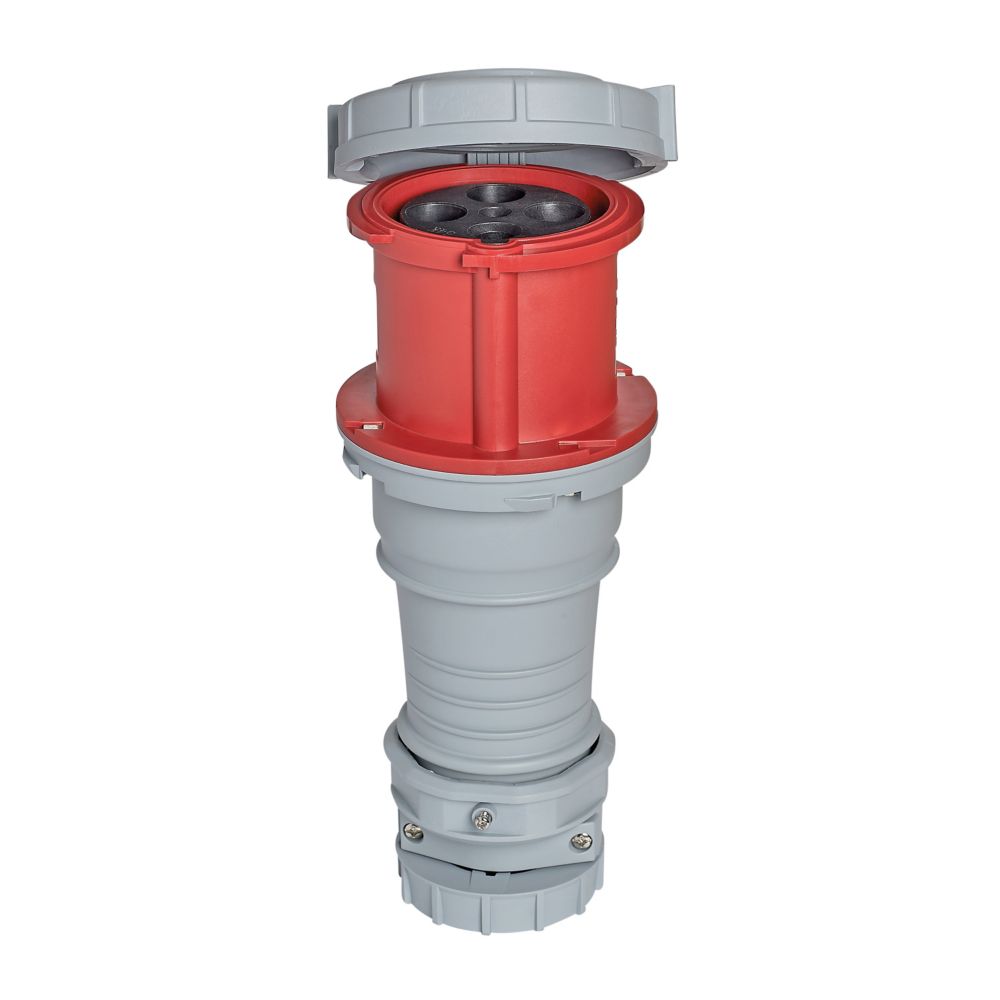

AH4100C6WDR Eaton Arrow Hart pin and sleeve connector, IP69K Rated, 100/125A, 100/125A 3Ø 380-415V, three-pole, 0.97-1.94in (2.46-5.00cm) cable diameter, #4 -1/0 AWG, #12 – #16 AWG (pilot), nickel plated brass, 4 wire , Cover Free Hanging (In-Line).
Connector Style: Pin and Sleeve (3P4W)
Connector Type: Receptacle, Female Sockets
Current Rating: 100/125A
Voltage Rating: 380/415VAC, 3 Phase
Number of Position: 4
Termination: Screw
Mounting Type: Free Hanging (In-Line)
Protection: IP67/IP69K Dust Tight, Water Resistant, Waterproof
Flammability Rating: UL94 HB
Approval: CE, cULus, TUV
Manufacturer: Arrow Hart / Eaton Wiring Devices
Manufacturer PN: AH4100C6WDR
