Description

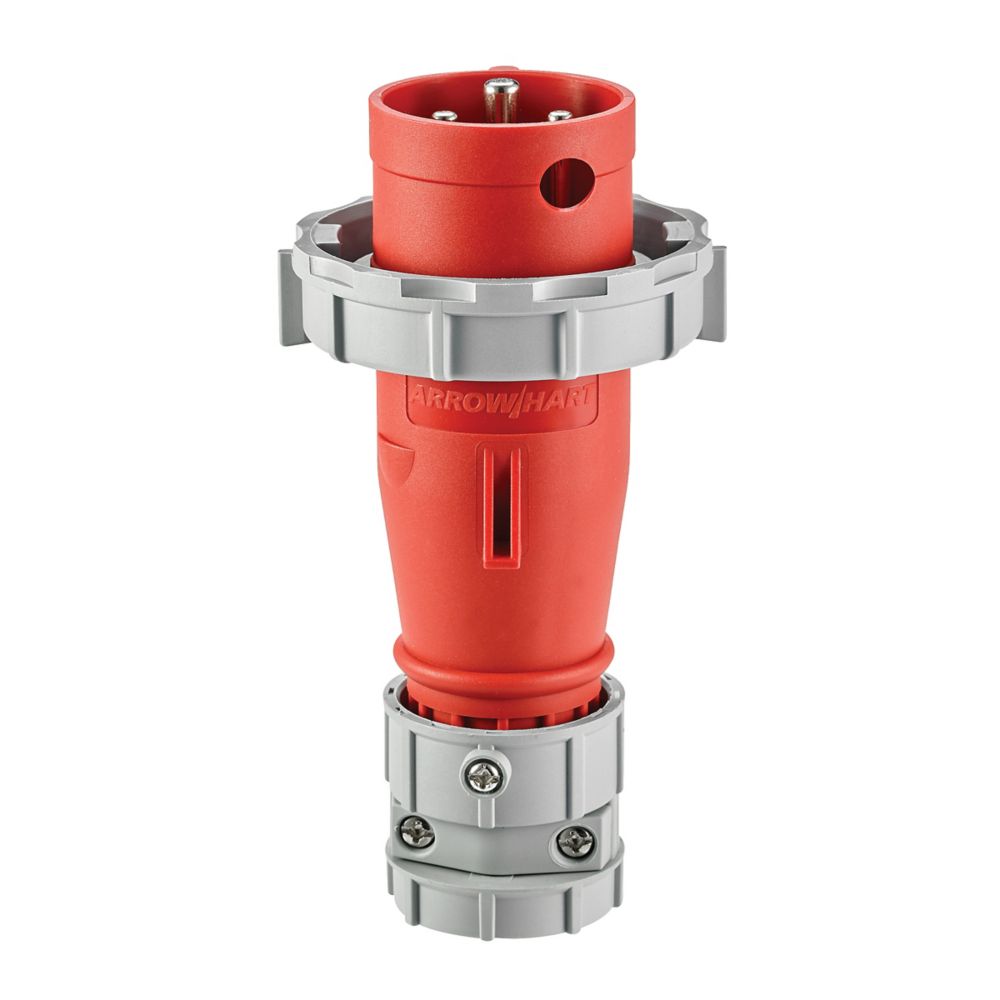

AH420P6WDR Eaton Arrow Hart pin and sleeve plug, IP69K Rated, 16/20A, 16/20A 3Ø 380-415V, three-pole, 0.333-0.775in (0.85-1.97cm) cable diameter, #12 – #10 AWG, nickel plated brass, 4 wire , Free Hanging (In-Line). Eaton’s red 16A/20A pin & sleeve plug is dual rated, IP69K certified, has 3-pole, 4-wire grounding and made for 380V-415V installation in harsh washdowns and wet locations.
Connector Style: Pin and Sleeve (3P4W)
Connector Type: Plug, Male Pins
Current Rating: 16/20A
Voltage Rating: 380/415VAC, 3 Phase
Number of Position: 4
Termination: Screw
Mounting Type: Free Hanging (In-Line)
Protection: IP67/IP69K Dust Tight, Water Resistant, Waterproof
Flammability Rating: UL94 HB
Approval: CE, cULus, TUV
Manufacturer: Arrow Hart / Eaton Wiring Devices
Manufacturer PN: AH420P6WDR
