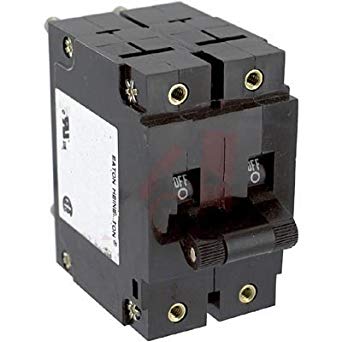

AM2R-D9-LC07D-A07-1-4 EATON HEINEMANN Circuit Breaker; Hydraulic/Magnetic; Hndl; Cur-Rtg 1A; Panel; 2 Pole
Body Style: Multipole-multiple actuator type
Body Length: 2.5 inches nominal
Body Width: 1.5 inches nominal
Manufacturer:Eaton
Datasheet:Others/eaton-1509554.pdf
Heinemann Circuit Breakers
Parameter Characteristics
Body Style Multipole-multiple actuator type
Body Length 2.5 inches nominal
Body Width 1.5 inches nominal
Body Height 2.0 inches nominal
Pole Quantity 2
Maximum Continuous Load Current Rating per Pole 1.0 amperes ac all locations
Trip Release Characteristic Time delay all locations
Part Name Assigned BY Controlling Agency Amr series
Actuator Type Toggle
Brand Eaton / Circuit Breakers
Current Rating 1A
Frequency 50/60 Hz DC GHz
Manufacturer Part Number AM2R-D3-LC07D-A-20-2
Mounting Hole Size Dia. 5.28 mm
Mounting Type Chassis, Rear Mount
Number of Poles 2
Overload Magnetic Hydraulic
Series AM/R Series
Termination screw
Trip Time Series Trip sec
Voltage Rating 250 V
Overview
The Heinemann AMR Series is the logical choice for applications requiring greater interrupting performance coupled with the sensitivity of hydraulic-magnetic
protection. The precisely tailored time delays and ability to interrupt high currents make them ideal for critical applications.
Features:
●Series Trip Construction with Two 6-32 Tapped Holes for Mounting
●Handles Have Dual Marking (On/Off I/O) in White and Black Handle
●General-Purpose, Medium Delay with Standard Time Delay Curve (See Chart Above)
●UL1077 Recognized
●UL489 Listed Versions Available Upon Request
