Description

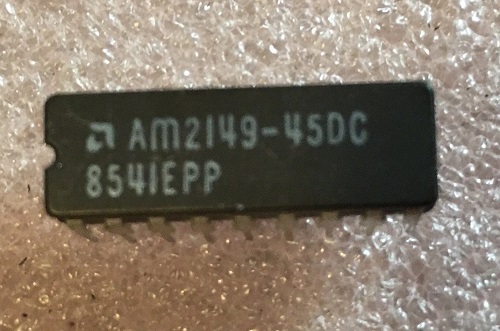

AMD AM2149-45 NS ICSRAM1KX4MOSDIP18PIN
| Package Description | CERAMIC, DIP-18 |
| Status | Discontinued |
| Sub Category | SRAMs |
| Access Time-Max | 45 ns |
| I/O Type | COMMON |
| JESD-30 Code | R-GDIP-T18 |
| JESD-609 Code | e0 |
| Memory Density | 4096 bit |
| Memory IC Type | STANDARD SRAM |
| Memory Width | 4 |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Terminals | 18 |
| Number of Words | 1024 words |
| Number of Words Code | 1K |
| Operating Mode | ASYNCHRONOUS |
| Operating Temperature-Min | -55 Cel |
| Operating Temperature-Max | 125 Cel |
| Organization | 1KX4 |
| Output Characteristics | 3-STATE |
| Output Enable | NO |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP18,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies (V) | 5 |
| Qualification Status | Not Qualified |
| Screening Level | 38535Q/M;38534H;883B |
| Seated Height-Max | 5.08 mm |
| Supply Current-Max | 0.1800 Amp |
| Supply Voltage-Nom (Vsup) | 5 V |
| Supply Voltage-Min (Vsup) | 4.5 V |
| Supply Voltage-Max (Vsup) | 5.5 V |
| Surface Mount | NO |
| Technology | NMOS |
| Temperature Grade | MILITARY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 22.86 mm |
| Width | 7.62 mm |
SPECIFICATIONS
Part #: AM2149-45/BVA
Part Category: Memory ICs
Manufacturer: Advanced Micro Devices, Inc.
Description: 1KX4 STANDARD SRAM, 45ns, CDIP18
Mfr Package Description CERAMIC, DIP-18
Status Discontinued
Sub Category SRAMs
Access Time-Max 45 ns
I/O Type COMMON
JESD-30 Code R-GDIP-T18
JESD-609 Code e0
Memory Density 4096 bit
Memory IC Type STANDARD SRAM
Memory Width 4
Manufacturer:AMD
Datasheet:Others/AM2149.pdf
