7117GHDZ-BK AmericanDenki PANEL MOUNT DUPLEX OUTLET 15A, 2P, 3W GND 125V LOCKING FOR STRAIGHT BLADE ROHS
It is an outlet for dual equipment of the stop-shaped pointing inclusive port. The material of the compact body, has adopted a flame retardant (UL94 V-0) specification nylon resin that does not contain harmful substances which is excellent in such as heat resistance and tracking resistance. Wire connection is the highest reliability due to the tightening of the terminal screw “crimp terminals expressions”. All of the terminal portion is arranged in parallel to the body back, you can do the wiring work in the same plane. Insert mouth shape, has become the de hard-sided effect on the attachment to the equipment and the board, the arrangement of the polarity was also unified. Mounting can be easily mounted and fixed with the supplied screw one (tap tight 3.5mm).
It is a safe protective cover of the charging unit (connecting portion).
After wiring (wire connection) using a crimping terminal to an outlet back, snap the claws of the insulation cover into the groove of the side.

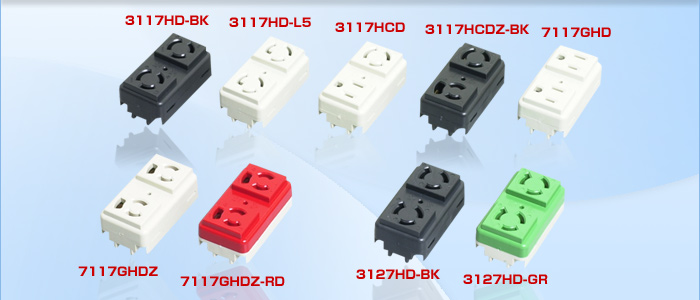

Panel Mount Duplex Outlet

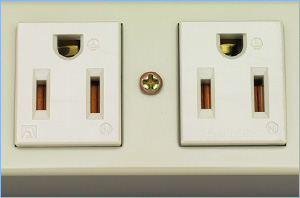

Panel Mount Duplex Outlet is the duplex contact device which is intended for flush embedded among an appliance or equipment, and which is intended to establish electrical connection with an inserted plug.
New color, red and green, is convenient to be color-coded according to source circuit at the same place.
AMERICAN DENKI’s Panel Mount Duplex Outlet Series will satisfy your needs because of the highest quality and performance of products and variety of rating.
| Rating | Catalog Number |
Color | JPN YEN (Tax Excluded) |
Main Applicable Product |
|---|---|---|---|---|
| Plug | ||||
 2P, 3W GND 125V Locking |
3117HD | White | 760 | 3112N 3112R R52-L |
| 3117HD-BK | Black | |||
 2P, 3W GND 125V Locking NEMA L5-15 |
3117HD-L5 | White | 850 | 3112N-L5 |
| 3117HD-L5-BK | Black | |||
 2P, 3W GND 125V Straight Blade + Locking |
3117HCD | White | 970 | 3112N 3112R R52-L 7112GN 7112GR-New |
| 3117HCD-BK | Black | |||
 2P, 3W GND 125V Locking for Straight Blade + Locking |
3117HCDZ | White | 1,050 | |
| 3117HCDZ-BK | Black | |||
2P, 3W GND 125V Straight Blade NEMA 5-15 |
7117GHD | White | 610 | 7112GN 7112GR-New |
| 7117GHD-BK | Black | |||
2P, 3W GND 125V Locking for Straight Blade |
7117GHDZ | White | 690 | |
| 7117GHDZ-BK | Black | |||
| 7117GHDZ-RD | Red | |||
| 7117GHDZ-GR | Green | |||
 2P, 3W GND 250V Locking NEMA L6-15 |
3127HD | White | 910 | 3122N 3122R 3122RL |
| 3127HD-BK | Black | |||
| 3127HD-RD | Red | |||
| 3127HD-GR | Green |
