Description
AMP# 1-87309-4 Headers & Wire Housings RECPT CONTA CT 24-20 Manufacturer: TE CONNECTIVITY

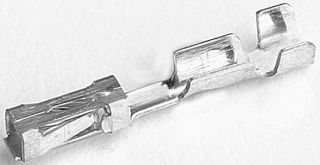

The 1-87309-4 is a socket Signal (Data)/Power Contact made of phosphor bronze with gold plated finish. The Mod V series high pressure contact with insulation support. It accepts 24 to 20AWG wire size.
- 3A Contact current rating
- 12mΩ Termination resistance
- 250VAC Operating voltage
- 750V Dielectric withstanding voltage
- 5000MΩ Insulation resistance
Applications
Industrial
Manufacturer Part Number: 1-87309-4
TE Connectivity
