AMP 390088-1 PITCH 0.1″ (2.54MM) CONTACT FINISH 30 GOLD

AMP 390088-1 – Jumper (Busbar), Shunt, Shunt, 0.100″ Pitch Headers, 2 Positions, 2.54 mm

ENQUIRY!
SKU: 390088-1 Category: Tags: , , Brand:

Description

390088-1 TE Connectivity AMP Connectors | Connector PITCH 0.1″ (2.54MM) CONTACT FINISH 30 GOLD

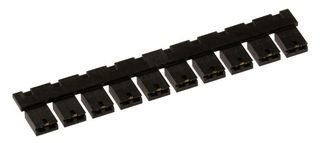

The 390088-1 is a 2-position Shunt Jumper (Busbar) with phosphor bronze contact base and gold plated mating area finish. The open top dual beam shunt comes with a black polyester (GF) housing. It is suitable for use with the PCB board-to-board connectors.
  • One-piece contact construction
  • High normal forces
  • 10000MΩ Insulation resistance
  • 20mΩ Termination resistance
  • -65 to 105°C Operating temperature range

Applications

Industrial

Manufacturer Part Number: 390088-1
TE Connectivity / AMP
