Description

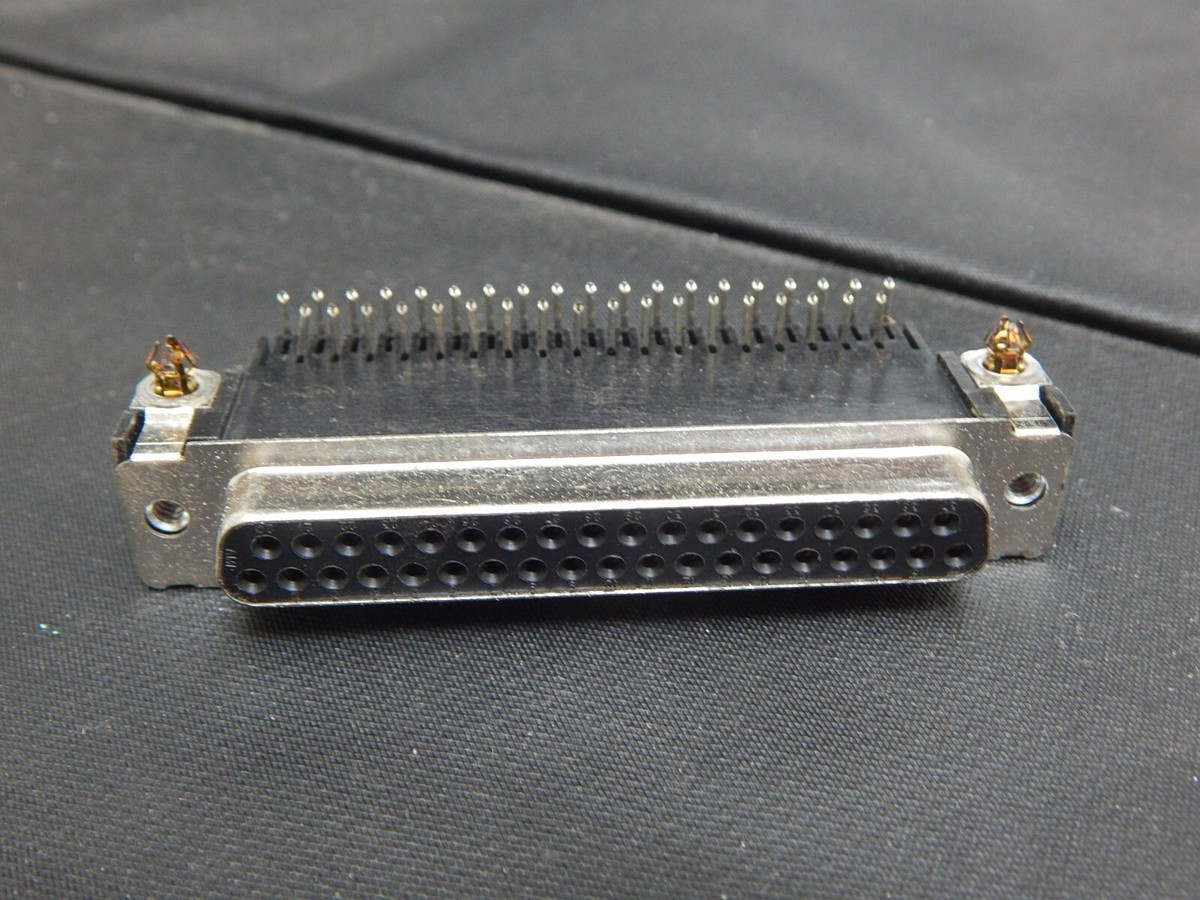

AMP – AMP 747839-4 HOUSING Conn D-Subminiature RCP 37 POS Solder RA Thru-Hole 37Terminal 1Port 37 Ccontacts, Female
Manufacturer Part Number: 2259
Series AMPLIMITE HD-20
Packaging
Tube
Part Status
Obsolete
Connector Style
D-Sub
Connector Type
Receptacle, Female Sockets
Number of Positions
37
Number of Rows
2
Mounting Type
Through Hole, Right Angle
Shell Size, Connector Layout
4 (DC, C)
Contact Type
Signal
Flange Feature
Housing/Shell (4-40)
Termination
Solder
Shell Material, Finish
Steel, Tin Plated
Contact Finish
Gold
Contact Finish Thickness
30.0µin (0.76µm)
Ingress Protection
–
Material Flammability Rating
UL94 V-0
Current Rating (Amps)
6A
Backset Spacing
0.590″ (14.99mm)
Features
Board Lock, Ground Strap
Voltage Rating
125V
Color
Black
Dielectric Material
Thermoplastic
Contact Material
Phosphor Bronze
Operating Temperature
-55°C ~ 105°C
