Description

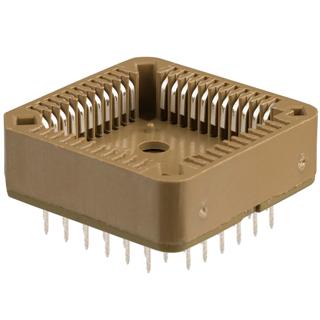

TE CONNECTIVITY / AMP 822473-4 IC & Component Socket, PLCC Socket, 44 Contacts, 2.54 mm, 2.54 mm, Tin Plated Contacts
- Level 11 connectors
- Accept J-Leaded PLCCs to JEDEC MS-016 and MS-018
- 8.25mm body height
- Top loaded contacts – eliminates solder bridging
- Closed base construction
Specifications
Manufacturer: TE Connectivity
Product Category: IC & Component Sockets
Product: PLCC Sockets
Number of Positions: 44 Position
Number of Rows: 4 Row
Type: Ladder Frame
Pitch: 2.54 mm
Termination Style: Solder Tail
Contact Plating: Tin
Row Spacing: 12.7 mm
Brand: TE Connectivity / AMP
Case Style: PLCC
Contact Material: Phosphor Bronze
Current Rating: 1 A
Features: PLCC sockets
Flammability Rating: UL 94 V-0
Housing Material: Thermoplastic
Mounting Style: Through Hole
Operating Temperature Range: – 55 C to + 170 C
Qualification: Commercial
Voltage Rating: 250 V
Manufacturer Part Number: 822473-4
