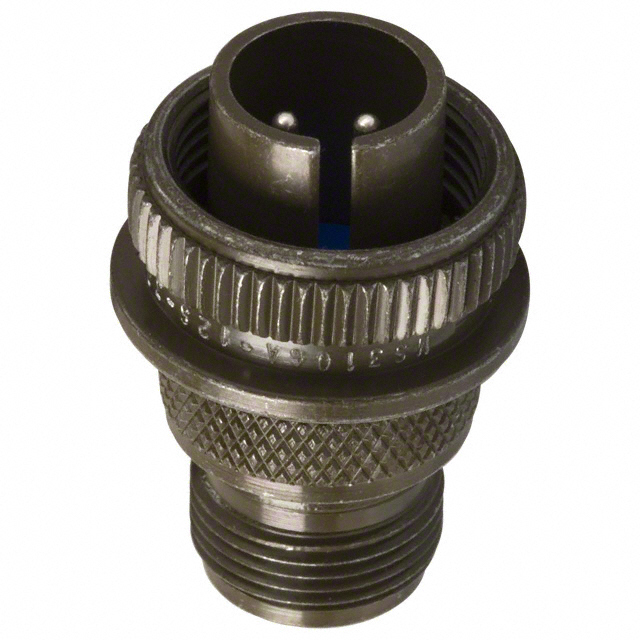

Amphenol 97-3106A-12S-3P Connector PIN 2 Terminal 1 Port

The 97-3106A-12S-3P is a 2-contact Circular Connector, 97 series, straight plug, 12S-3 insert arrangement, solid backshell and pin contact. Connector component is fabricated from high grade aluminum alloy, with a conductive cadmium-plated finish and an olive drab chromate after-treatment. Contact is silver plating with pre-tinned solder cups. Inserts for solder style contacts are diallyl-phthalate. Sturdy, simple to assemble. Coupling ring machined from solid aluminum bar stock for high tensile strength. Mates with all types of MS receptacles. Front shell includes polarizing keyway. Back shell is threaded for standard MS/AN fittings.

Automotive; Robotics; Maintenance & Repair; Commercial; Medical; Automation & Process Control; Sensing & Instrumentation; Defence, Military & Aerospace
