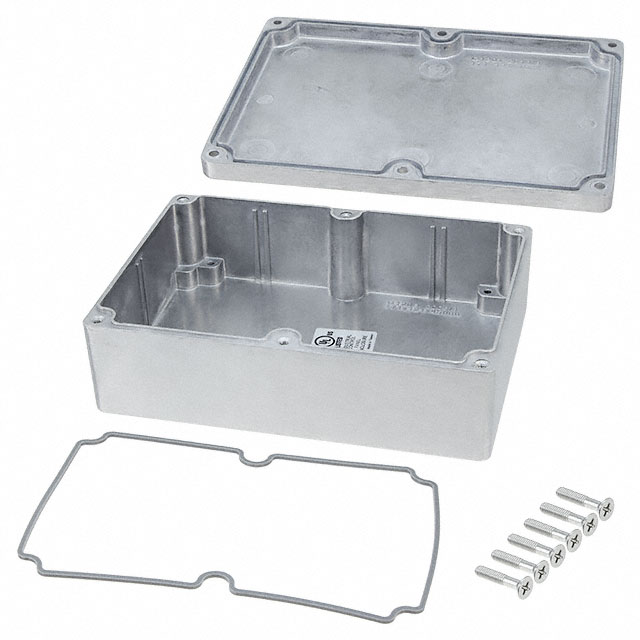

AN-1306-A Bud Industries Electrical Enclosures 6.73x4.76x2.17" NEMA 6, 6P, IP68

AN-1306-A Bud Industries Electrical Enclosures 6.73×4.76×2.17″ NEMA 6, 6P, IP68

BUD INDUSTRIES AN-1306-A Enclosure, Wall Mount, 55 mm, 120.9 mm, 170.9 mm, Aluminium Alloy, Natural

ENQUIRY!
SKU: AN-1306-A Category: Tag: Brand:

Description

Bud Industries Inc AN-1306-A ENCLOSURE, WALL, ALUMINIUM, NATURAL, Enclosure Type:Wall Mount, External Height – Metric:55mm, External Width – Metric:120.9mm, External Depth – Metric:170.9mm, Enclosure Material:Aluminium Alloy, Body Color:Natural, IP Rating:IP68

Features

  • Designed to IP65 of IEC529 and NEMA 1, 2, 4, 4x, 12, and 13 specifications.
  • Wall mounting holes (on Style A) and cover attaching screws are outside the sealing area thus preventing ingress of moisture and dust (Style B does not have wall mounting holes).
  • Cover incorporates a recessed gasket.
  • Internal bosses for mounting PCBs horizontally or for connecting terminals, ground, etc.
  • Most models have internal guide slots for mounting PCB assemblies vertically.
  • Cover mounting holes are roll threaded and screws are recessed.
  • UL Listed #E194432.

Bonus Features

  • Body & Cover: Aluminum Alloy #ADC-12
  • Gasket: Silicon Sponge
  • Cover Screws: M4 Stainless Steel, non-magnetic
  • PCB Mounting Hardware: Requires kit #57-58, ordered separately

Finishes

  • Natural Finish or Gray (add suffix -G)

Specifications

Manufacturer: Bud Industries
Product Category: Electrical Enclosures
RoHS: RoHS Compliant
Product: Enclosure
Type: NEMA Rated Enclosure
NEMA Rating: 4, 4X, 6, 6P, 12, 13
Length: 170.9 mm
Width: 120.9 mm
Height: 55 mm
Material: Aluminum Alloy
Color: Natural
Brand: Bud Industries
Dimensions: 170.9 mm L x 120.9 mm W x 55 mm H
IP Rating: IP 68
Series: AN-13XX-A
Manufacturer:Electronic Components
Datasheet:hban1306a.pdf
