Description

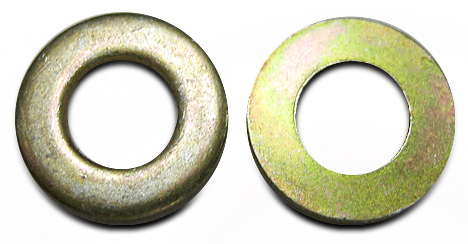

AN961-8 Military Washer, Flat – Tin Plated – #8 – ID: .174, OD: .375, T: .032
Features and Spec.
Cross Sectional Shape: Rectangular
Hole Diameter: 0.164 inches minimum and 0.184 inches maximum
Edge Shape: Round
Center Hole Shape: 1 round
Center Hole Shape: Round
Thickness: 0.022 inches minimum and 0.042 inches maximum
Overall Diameter: 0.370 inches minimum and 0.395 inches maximum
Material: Copper alloy 270 overall or copper alloy 268 overall
Material Specification: Sae1/2 hard assn std 1st material response overall and qq-b-626 1/2 hard fed spec 2nd material response overall
Surface Treatment: Tin overall
Surface Treatment Specification: Mil-t-10727,type 1 mil spec single treatment response overall
Manufacturer Part Number: AN961-8T
