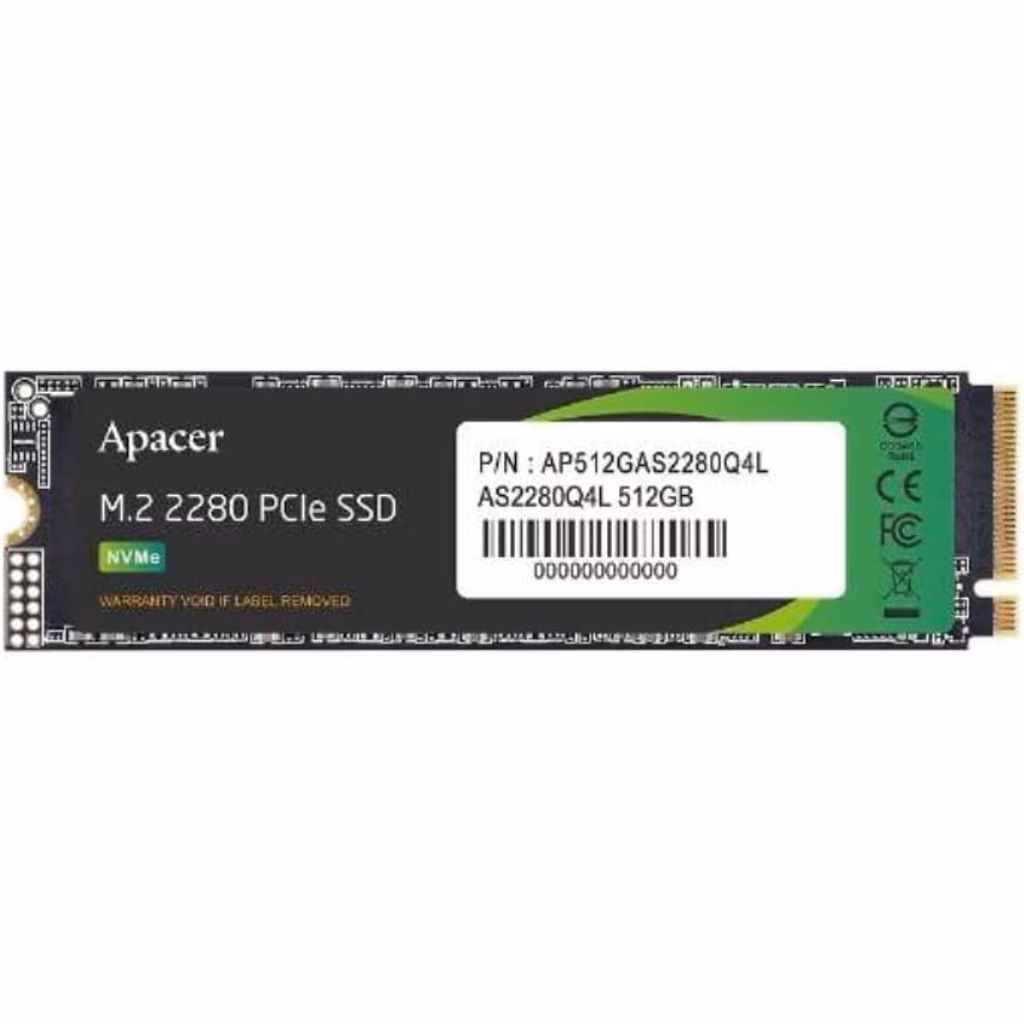

AP512GAS2280Q4L-1 Apacer M.2 PCIe M.2 512GB Drive

AP512GAS2280Q4L-1 Apacer M.2 PCIe M.2 512GB Drive

Please call 800-717-6475 to check current stock and pricing.

The Apacer AS2280Q4 is a solid-state drive in the M.2 2280 form factor, launched on July 17th, 2019. It is available in capacities ranging from 500 GB to 2 TB. This page reports specifications for the 1 TB variant. With the rest of the system, the Apacer AS2280Q4 interfaces using a PCI-Express 4.0 x4 connection. The SSD controller is the PS5016-E16-32 from Phison, a DRAM cache chip is available. Apacer has installed 96-layer TLC NAND flash on the AS2280Q4, the flash chips are made by Toshiba. To improve write speeds, a pseudo-SLC cache is used, so bursts of incoming writes are absorbed more quickly. Thanks to support for the fast PCI-Express 4.0 interface, performance is excellent. The AS2280Q4 is rated for sequential read speeds of up to 5,000 MB/s and 4,400 MB/s write; random IO reaches 750K IOPS for read and 750K for writes.

SKU: AP512GAS2280Q4L-1 Category: Brand:

Description

AP512GAS2280Q4L-1 Apacer 2TB M.2 PCIe Gen4 x4 SSD 512GB, Standard (Single) – 3D NAND Drive

PCIe Gen4 x4 interface is fully compliant with the NVMe 1.4 standard.
With sequential read/write performance of up to 3,600 / 3,000 MB/s.
Built with 3D NAND Flash, offers capacity options of up to 2TB and performs higher efficiency and reliability.
Data Protection Mechanism Delivers Consistent Performance

SPECIFICATIONS:

Product Name: AS2280Q4L
PN: AP512GAS2280Q4L-1
Capacity: 512GB
Interface: PCIe Gen4 x4
NAND Flash: 3D NAND
Sequential Read Performance: Up to 3, 600 MB/s
Sequential Write Performance: Up to 3, 000 MB/s

*The performance may vary due to host hardware, software, usage and storage capacity.
IOPs (4K Random Write): Up to 600, 000 IOPS
Shock: 1, 500G/ 0.5 msec
MTBF: 1, 500, 000 hours
Standard Operating Temperature: 0°C ~ +70°C
Storage Temperature: -40 ~ +85°C
Dimensions Single side: (L) 80 x (W) 22 x (H) 2.25 mm
Double side: (L) 80 x (W) 22 x (H) 3.50 mm
Warranty 3 years limited warranty

The updated version of the Apacer AS2280Q4L SSD is a high-performance solution with PCI-E 4.0 support, ideal for gamers and content creation professionals. Part of the versatile Apacer AS consumer series, most products provide the optimal balance between cost, speed and functionality. Refers to the M.2 format, thanks to which it easily fits even into the smallest gaming consoles, laptops and ultrabooks.

Offers one of the most attractive price-performance combinations among SSDs with PCI-E 4.0 support. Its key feature is the use of a four-channel controller without a cache buffer and support for Jost Memory Beffer (HMB) technology. It allows you to significantly save on drive production without resorting to the use of expensive DRAM buffer memory, using existing system memory instead.

The drive is equipped with an inexpensive and modern PCI-E 4.0 controller and supports NVMe 1.4 interface. The device offers high read speeds of up to 3600 MB/s and write speeds of up to 3000 MB/s, as well as 4K block write performance of 600 thousand IOPS. Thus, the SSD guarantees quick access to applications, accelerated processing of large files, such as 4K video materials, high-resolution orchestral libraries, RAW photos, etc.

Also, such speed will not be superfluous in modern games with large and open worlds that require a lot of time and resources to load. Like all representatives of the AS series, the drive is equipped with an official three-year warranty with a guaranteed failure life of around 600 TB. In addition to the 1 TB version, there are more affordable options with 512 GB and 2 TB storage capacity.
