Description

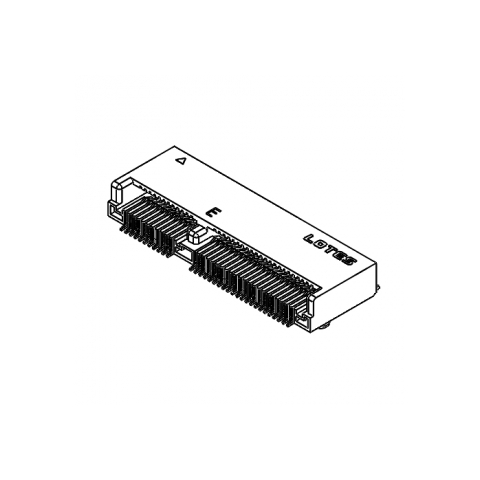

APCI0085-P002A Lotes Card Edge M.2 NGFF connector interface SSD Socket 67pin 0.5mm pitch, e key, smt,top-mount,r/a,hf RoHS
Product General Characteristic
Product Overview: M.2 3.2H 67Pin,E Key
Component Type: Receptacle
PCB Mount Type: SMT
Orientation: Right Angle
Physical Characteristic
Housing Material: LCP
Contact Material: Copper Alloy
Plating Material on Contact Area: Au
Plating Thickness on Contact Area: G/F
Circuits: 67pin
Pitch: 0.5mm
Tail Length: 0.4&0.55mm
Locating Post: 1.45&0.95mm
Durability: 25 Cycles
Housing Color: Black
Electrical Characteristic
Current Rating: 0.5A
Max. Voltage: 30V
Solder Process Characteristic
Solder Process Type: IR Reflow
Max. Process Temperature: 260C
Duration at Max. Process Temperature: 10s
Environment Characteristic
RoHS/ Halogen Free(HF) Compliance: HF
Others
Packaging: Reel
Manufacturer:Electronic Components
Datasheet:LOTES-APCI0085-P002A_C841649.pdf
