Description

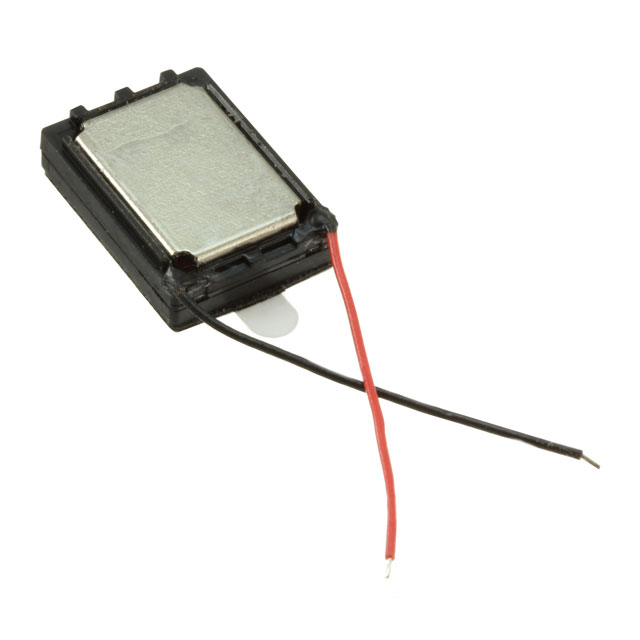

AS01508AO-LW25-R PUI Audio Speaker 8 Ohms General Purpose Speaker 700mW 550Hz ~ 20kHz Top Rectangular 84dB
Product Attributes
Categories Audio Products
Speakers
Manufacturer PUI Audio, Inc.
Series Slim Line Micro
Packaging Tray
Part Status Obsolete
Technology Magnetic
Type General Purpose
Frequency Range 550Hz ~ 20kHz
Frequency – Self Resonant 550Hz
Impedance 8 Ohms
Efficiency – dBA 84.00
Efficiency – Testing 100mW/100mm
Efficiency – Type Sound Pressure Level (SPL)
Power – Rated 700mW
Power – Max 1W
Port Location Top
Shape Rectangular
Material – Cone Polyester, Polyethylene Terephthalate (PET)
Material – Magnet Nd-Fe-B
Termination Wire Leads
Size / Dimension 0.591″ L x 0.433″ W (15.00mm x 11.00mm)
Height – Seated (Max) 0.154″ (3.90mm)
Manufacturer: Electronic Components
MFG Part #: AS01508AO-LW25-R
