Description

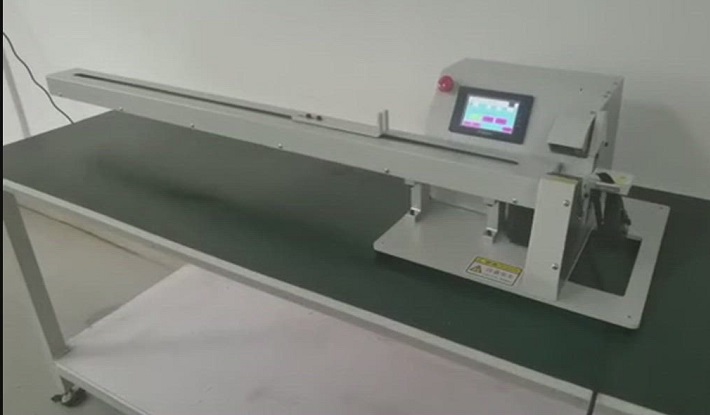

This wire harness taping machine can process spot taping and continuous taping. There are requirements for the wrapping length of the tape, and the accuracy of the wrapping position can reach: 1mm.
Taping method: spot taping, continuous taping
Compatible with different types of tape materials without release paper, such as Flannel tape, acetate tape, electrical tape, polyester tape, etc.
Flat, no wrinkles, the winding of the cloth tape is overlapped with the previous circle by 1/2
Technical Data
Model: AT-080LX
Wire pulling length: 1,050mm ((longer can be customized)
Taping density: adjustable
Taping method: spot taping, continuous taping
Applicable tape: Flannel tape, acetate tape, electrical tape, polyester tape, etc.
Tape width: 5-25mm (other sizes need to be customized)
Tape inner hole size: D37,D32
Host speed (ret/min): 300-2,500 continuously adjustable
Weight: 36KG
Powper supply: AC220V/DC24V 50/60HZ
Dimension: 1,470mm*380mm*280mm (LxWxH)
Maximum wire diameter ?30mm
Main engine speed (RPM) 200-1400
RPM, adjustable
Applicable tape PVC, vinyl, cloth, felt,
tape, etc.
Tape outer diameter up to 110mm
Tape width 9-19 (other sizes can be
customized)
Package size 400*410*340mm
Tape inner hole size ? 38 (option: ? 32)
Winding length infinite length
Voltage 220v/110v optional
With sliding unit 1.05m.holder and
protection cover
Manufacturer: Electronic Components
MFG Part #: AT-080LX
