Description

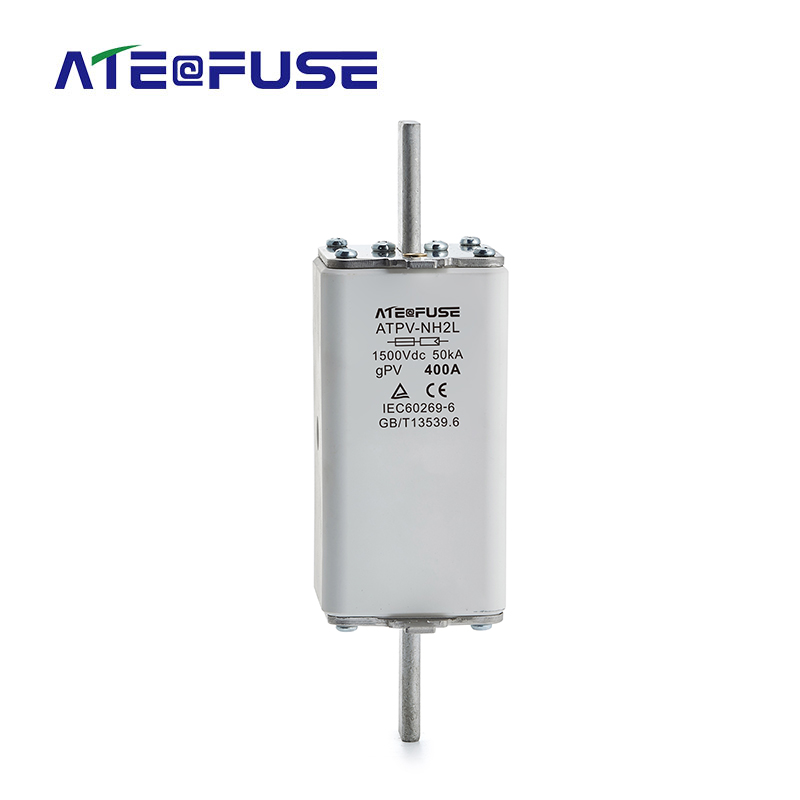

ATPV-NH2XL 1500VDC Solar PV Fuse is specifically designed for protecting and isolating Photovoltaic(PV)array combiners and DC disconnects,This enhanced construction fuse link with an NH2L standardized size can protect 1500VDC Photovoltaic(PV)systems effectively 1500VDC 400A NH2L Solar PV Fuse Link with Striker offers various ampere ratings from 63A to 400A,which helps to match specific situations in different Photovoltaic (PV) applications, suchas PV array protection, PV Inverter DC input protection. Zhejiang Aite Electric Technology Co., Ltd.(AITE) is developing new Solar PV Fuse products constantly to meet the emerging needs of the Photovoltaic (PV) industry.
Features & Benefits
1500VDC Photovoltaic (PV) system available
63-400A ampere ratings available
Meets IEC60269-6 standard for global acceptance
Standardized NH2L construction
Low power dissipation design for high energy efficiency
NH screw mountable
50kA breaking capacity
Striker and microswitch available
Approvals & Standards
IEC60269-1 and IEC60269-6
UL248-1 and UL248-19
GB/T13539.1 and GB/T13539.6
Class of Operation
gPV
Applications
• Combiner box
• PV array protection
• Inverters
• Re-combiner units
• In-line PV module protection
Recommended Fuse Holder
ATPV-NH2LD 1500VDC Fuse Base
Optional Accessories
• Striker
• Microswitch
