Description

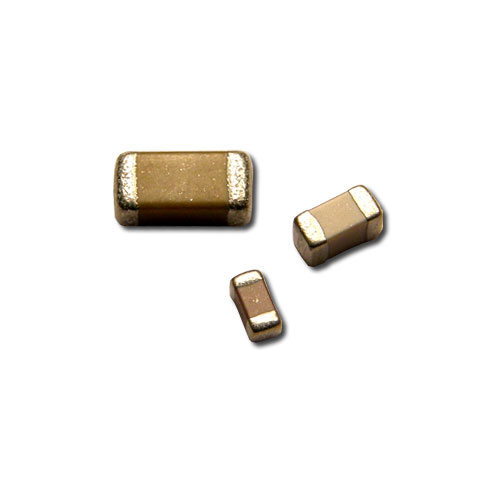

AVX 06035A150JAT2A SMD Multilayer Ceramic Capacitor, 15 pF, ± 5%, C0G / NP0, 50 V, 0603 [1608 Metric]
The 06035A150JAT2A is a surface-mount (SMT) Multilayer Ceramic Capacitor with Ni and Sn plated terminations. The C0G (NP0) is the most popular formulation of the temperature-compensating, EIA Class I ceramic materials. Modern C0G (NP0) formulations contain neodymium, samarium and other rare earth oxides. C0G (NP0) ceramics offer one of the most stable capacitor dielectrics available. Capacitance change with temperature is 0±30ppm/°C which is less than ±0.3% ?C from -55 to 125°C. Capacitance drift or hysteresis for C0G (NP0) ceramics is negligible at less than ±0.05% versus up to ±2% for films. Typical capacitance change with life is less than ±0.1% for C0G (NP0), one-fifth that shown by most other dielectrics.
Reflow/wave soldering method
EIA Class I dielectric
C0G (NP0) formulations show no aging characteristics
Low parasitics
Excellent EMI filtering capabilities
Standard product
Applications
Industrial
Manufacturer:AVX
Datasheet:759117.pdf
