Description

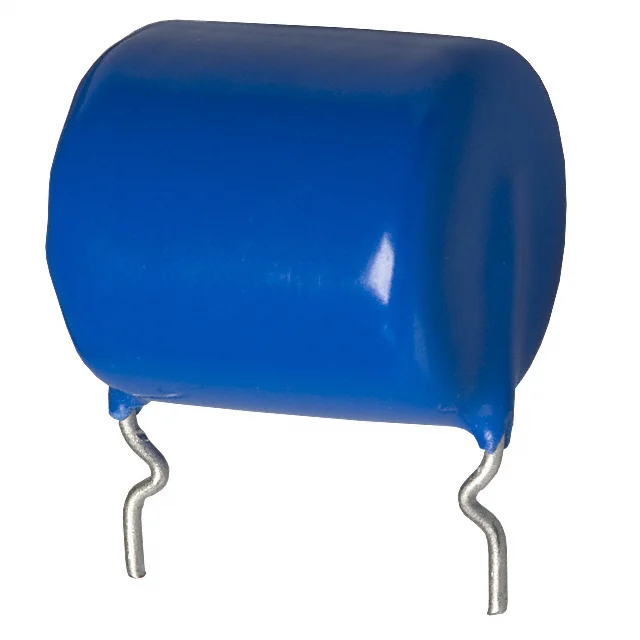

AY470KE Ohmite Ceramic Composition Resistor 47 Ohms 10% 4.5W Through Hole Resistor Radial Flame Retardant Coating, Moisture Resistant, Non-Inductive, Pulse Withstanding, Safety Ceramic
The AY series from Ohmite are PulsEater resistor with ceramic composition available in E12 ohmic values range from 2.2 to 6.8K. These are designed for a variety of applications where high energy handling capabilities are crucial. These resistors are ideal for any application which is subject to surges, high peak power or impulse energy. Their unique design allows uniform distribution of energy throughout their structure which results in low thermal stress. The high temperature, solvent resistant epoxy coating carries which is suitable for almost any environment. The AY series resistors are used in motor drives, power supplies, UPS, power conversion and in-rush current limiting applications.
Specifications
Manufacturer: Ohmite
Product Category: Ceramic Composition Resistors
RoHS
Series: A
Resistance: 47 Ohms
Power Rating: 4.5 W
Tolerance: 10 %
Temperature Coefficient: 100 PPM / C
Minimum Operating Temperature: – 55 C
Maximum Operating Temperature: + 150 C
Voltage Rating: 2 kV
Diameter: 21 mm
Length: 25 mm
Termination Style: Radial
Packaging: Bulk
Technology: Ceramic Comp
Brand: Ohmite
Mounting Style: PCB Mount
Lead Spacing: 22.5 mm
Product Type: Ceramic Composition Resistors
Factory Pack Quantity: 25
Subcategory: Resistors
Unit Weight: 0.649041 oz
Manufacturer Part Number: AY470KE
Ohmite
