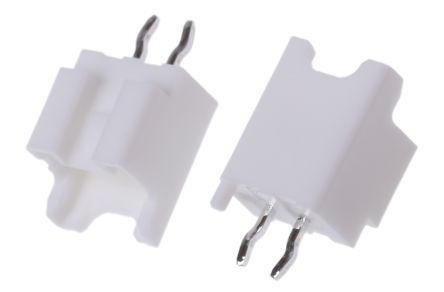

B06B-PASK-1(LF)(SN) JST Connector Header, PA Series, Top Entry, 6 Position, Male Pin, 1 Row, 2.0mm, Through Hole, Natural, With Boss
The PA interconnection system on a 2.0mm pitch provides a secure wire to board connection with additional locking device feature. The thumb depress mechanism prevents accidental disconnection during assembly or as a result of vibration. Suitable for a wide range of applications where a secure anti-vibration connection is required.
The B06B-PASK-1(LF)(SN) is a Part of PA Series 6 Position 2 mm Wire-to-board or Wire-to-wire Crimp style Connector. Its operating Temperature ranges from -25 °C to +85 °C.
As an added safety precaution, the shrouded B06B-PASK-1 (LF)(SN) header connector from JST Corporation will prevent and protect components on your circuit board from accidentally touching each other. This HDR connector’s 6 contacts that are made out of copper alloy and plated with tin over copper. Its pitch is 2 mm. It has a header type gender. It has a straight body orientation. It has a maximum voltage rating of 250 VDC|250VAC. This is a 1-row connector. This device has a maximum current rating of 3 A. B06B-PASK-1 (LF)(SN) is housed in white polybutylene terephthalate. This product is 14 mm long, 7.7 mm tall and 5.3 mm deep. It uses the solder termination method. This connector has an operating temperature of -25 to 85 °C.
Categories Connectors, Interconnects
Rectangular Connectors – Headers, Male Pins
Manufacturer JST Sales America Inc.
Series PA
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch – Mating 0.079″ (2.00mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded – 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length – Mating 0.126″ (3.20mm)
Contact Length – Post 0.118″ (3.00mm)
Overall Contact Length 0.319″ (8.10mm)
Insulation Height 0.303″ (7.70mm)
Contact Shape Square
Contact Finish – Mating Tin
Contact Finish – Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 9.9mm, 14.7mm, 14.9mm
Manufacturer:JST
Datasheet:JST/PA-PAF.pdf
