Description

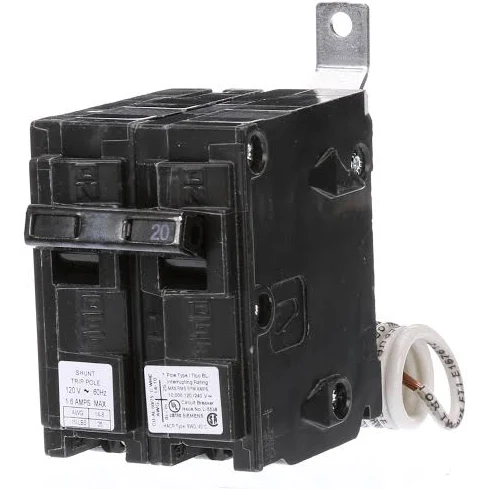

B12000S01 Siemens Molded Case Circuit Breaker, Type BL, 120 V AC, 20 A, 60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 1 Pole, 1 ph, Toggle Actuator, Bolt-On Connection, 14 to 10 AWG, 12 to 10 AWG Wire, Panel Mounting, 40 deg C, 5.5 in L x 4.4 in W x 3.8 in H Dimensions
The Siemens B12000S01 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 120/240VAC. It has an interrupting rating of 10kAIC at 120VAC. The B12000S01 has a bolt-on connection type and includes long time and instantaneous trip functions.
Siemens product a one pole 20 ampere at 40 deg c with bolt on connection It has a standard interrupting rating of 10 Kiloampere At 120/240 VAC (UL) and terimnal load lug thermal magentic molded case circuit breaker.
Specifications:
Product Lifecycle (PLM): PM300:Active Product
Net Weight (lb): 0.507 lb
Product Group: 5201
Compliance with the substance restrictions according to RoHS directive: not available
Authentic Siemens Product
Voltage Rating: 120 Volt
MOLDED CASE
THERMAL AND FIXED MAGNETIC TYPE
P1/P2/P3/P4/P5 PANELBOARD USED ON
BOLT-ON INSTALLATION
UL 489, CSA C22.2 APPROVAL
LIGHTING, DISTRIBUTION APPLICATION
120/240 VOLT AC 50/60 HERTZ VOLTAGE RATING
10 KILOAMP INTERRUPTING RATING
20 AMP AT 40 DEG C CURRENT RATING
1 POLE(S)
ROHS COMPLIANT; FRAME TYPE BL
TERMINAL TYPE LOAD LUG
SIZE 1 INCH WIDTH X 2.37 INCH DEPTH X 3356 INCH HEIGHT
INCLUDES 120 VOLT AC FACTORY INSTALLED SHUNT TRIP
