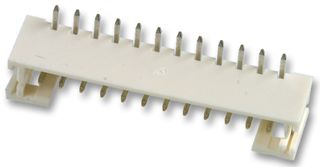

B12B-PH-SM4-TBT(LF)(SN) JST Wire-To-Board Connector, Top Entry, 2 mm, 12 Contacts, Header, PH Series, Surface Mount, 1 Rows
The B12B-PH-SM4-TB is a 12-contact 2mm pitch Crimp Connector, 2A, 100V rated. This PH thin disconnectable wire to board Connector is made of tin plated copper undercoated copper alloy post, ivory PA wafer, tin plated copper coated brass solder tab having top entry PC board mounting direction. The dimple at the center of the contact ensures positive contact and low contact resistance at all times. The contact has a long wire strip holding length of 2.6 +-0.4mm, fully shrouded header and 24AWG applicable wire gauge.
Connector Type Header
Contact Type Male Pin
Pitch – Mating 0.079″ (2.00mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded – 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Detent Lock
Contact Length – Mating 0.130″ (3.30mm)
Insulation Height 0.260″ (6.60mm)
Contact Shape Square
Contact Finish – Mating Tin
Contact Finish – Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 100V
Mated Stacking Heights 8.6mm
Manufacturer Part Number: B12B-PH-SM4-TBT(LF)
